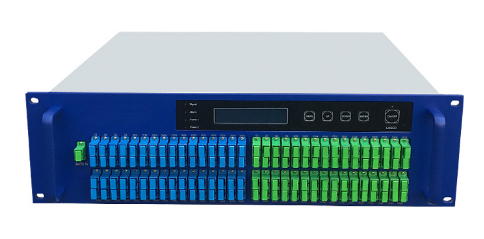

64Port PON & CATV WDM EDFA combiner

64  Port PON & CATV WDM EDFA combiner is a newest PON+CATV FTTH/FTTP GPON/EPON triple into one of optical transmitter system equipment, Every external up-link optical port of optical amplifier can connect with OLT PON port very conveniently.
Each output port for optical amplifier has built-in well-performed CWDM. Every external up-link optical port of optical amplifier can connect with OLT PON port  very  conveniently.
Each 1550nm (CATV)'s output optical port multiplex 1310/1490n's data stream, in order to reduce the quantity of the component and improve the index and reliability of the system.

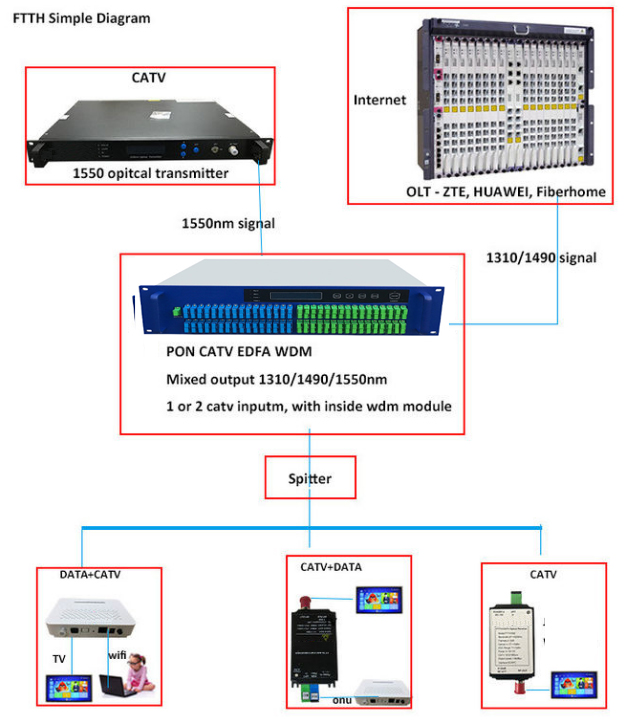

realized combine function of the amplification of optical signal OLT and CATV 1550nm. The optical input number: 1 port of CATV + 64 ports PON input ports,
4/8 ports outputs of 1550nm/1490nm/1310nm combine output, the combined optical output power rate: 27~37dBm. plug-in power supply, achieved the function of OLT and CATV 1550nm optical single combined and amplify, having high cost performance value.
Built-in low noise pre-amplifier, not necessary EDFA cascade, extremely lower the CNR, MER degradation of the system

Low noise figure ( Typ ≤4.5dB, Max ≤5.0dB )
Perfect RS232 ,SNMP
Telecom level safety reliability and network management
Efficient space, simple and reliable in construction/maintenance
Optional dual optical input, built-in 2 × 1 optical switch
Dual power supply optional, 1+1 backup
Can reduce the 98% device space usage
Can reduce the 85% device purchase cost
Can reduce 95% power consumption
Industry's best price-performance .
