Specification

Features:

● E1 interface:
●Channel capacity: 8 Channels
●Bit Rate: 2.048 Mb/s ±50 ppm
●Line Impedance: 120 Ohm / 75 Ohm
●Connector: RJ-48 / BNC
●Pulse Shape: ITU-T G.703
●Jitter Performance: ITU-T G.823
●Clock mode: internal-clock, external-clock



Optical interface:
Line mode type: CMI
Optical wavelength: 850/1310nm for multi-mode fiber, 1310/1550nm for single-mode fiber.
Optical interface: SC/FC(Optional)
Transceiver module: > -8dBm (for 1310nm single mode 40km optical module)
Optical receiver sensitivity: <-36(BER<10) (for 1310nm single mode 40km optical module)
Transmission distance: multi-mode 2 Km, single-mode 20/40 /60/ 80 / 120 Km, WDM available for different distances

Architecture:
19’’, 1U, rack mountable

Power supply:
DC: -48V (-36 to -72V);
AC: 85 to 264 VAC ; 47 ~ 63Hz
Power Interface: DC power terminal/AC socket
Power Consumption: ≤ 10 W

Other Specification
Operation temperature:0℃～50℃
Storage temperature:-20℃～80℃
0～90%(no condensation)

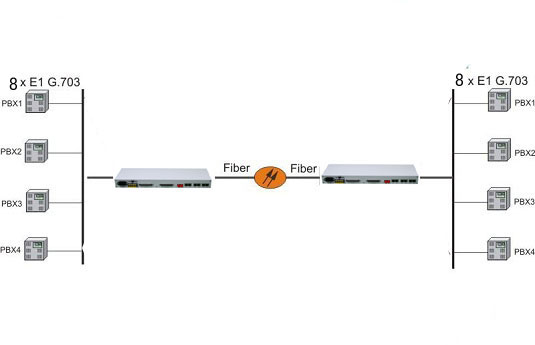

Solutions

.
