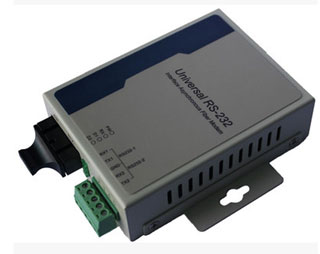

Specification

Features:

Based on self copyright IC.
Serial date creates receive and send signal automatically.
RS232/RS485/RS422 interface can be optional by dip switch.
Serial port supports 0-115.2KBps baud rate auto-negotiation.
Combination of PDH technology and digital lock loop clock technology.
Unique serial port for circuit protection, supporting hot-plugging.
Data transmission is stable and reliable with integrated light-receiving and transmitting module.
Complete surface paste and install craft, industrial grade design, and production-runs with piece-pasting machine.

Optical port
Wavelength:single-mode 1310nm/1550nm/multi-mode 850nm/1310nm for option
Fiber core number: double core/single core for option
Sending consumption:-9dBm/-5dBm
Transmitting range: 0-50km/120km for option
Receiving sensitivity: <-36dBm (BER <10-11)
Connector:SC/FC/ST

RS232 port:
Rate:asynchronous mode:0-115200bps auto-negotiation
Characteristic: satisfies ITU-T V.24 V.11 standard
Connector: RJ45

Environment
The device operate temperature range wide, can work normally and stable in different environments.
Operate temperature: 0C~50C
Relative humidity: 95% (no condensation)
No causticity and impregnant gas, no rising dust, and no strong magnetic field disturbing.
Power supply
Use module power supply as following for option, working voltage range wide, good anti-disturb and isolation, work stable.
DC-48V: voltage range -36V~-72V
AC220V: voltage range 175V~265V
power consumption: <5w
