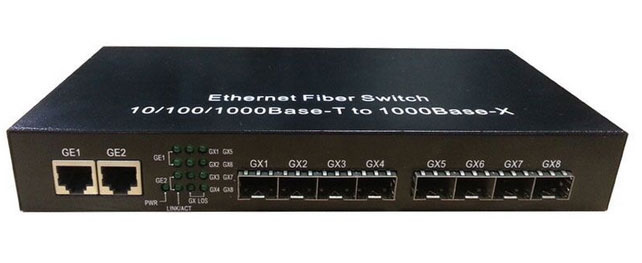

 8 Optic SFP port 1-2 Rj45 Media Converter


HD is 8xSFP port and 1-2 RJ45 ports 10/100/1000Mbps adaptive fast Ethernet fiber media converter, which
converting the 2 independent 10Base-T or 1000Base-TX twisted pair electrical signal with 1000Base-FX optical signal. It extends the network transmission range from 100m over copper wires to 120Km (single-mode full-duplex mode).


Specification



Features:

1. Switch Ethernet signals among 10/100/1000M UTP ports (T) and 1000M Optical Fiber Interfaces (X)
2. Auto negotiation function, supports UTP ports 10/100/1000M and Full Duplex/Half Duplex auto-negotiation
3. 1000M Fiber port supports 1000M and Full Duplex mode.
4. Supports flow control and broadcast storm protection.
5. Supports VLAN and QoS.
6. Supports max 10K bytes frame.
7. low power consume (4W), low heat, and good reliability.

Specifications

1. Operating standards:IEEE802.3z/AB,10/100/1000Base-T and 1000Base-SX/LX
2. MAC address table: 1K
3. Frame buffer memory:1MKb
4. Switching capacity:12G
5. Connector: UTP:RJ-45,10/100/1000Mbps;
Fiber: 1000Mbps;
6. Cable:UTP:Cat.5 or 6 UTP(the max distance up to 100m)
Multimode Fiber:50/125,62.5/125μm
Singlemode Fiber:8/125,8.7/125,9/125μm(the max distance up to 10~100 km)
7. Flow control:Full Duplex: IEEE802.3x flow control;
Half Duplex: back pressure flow control
8. LED:PWR,F1 Link/Act,F2 Link/Act;TP1~TP4 Link/Act,TP1~TP4 100,TP1~TP4 1000;
9. Power Requirement: AC220V(100-240V),50~60Hz; DC:5V,2A
10. Ambient Temperature::0 ~ +50℃;
11. Storage Temperature::-20 ~ +70℃;
12. Humidity:5% ~ 90%;

Solutions



.

Model

Model
Specifications
HY-E62P81
8 Optic 1 Rj45 port ,SFP 1000M(Not include SFP Module )
HY-E62P82 8 Optic 2 Rj45 port , SFP 1000M(Not include SFP Module)
