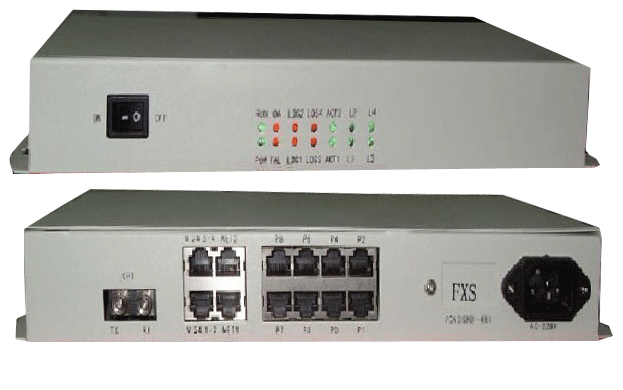

8 FXS/FXO/E&M over E1


provides 8 channels of telephones over E1 transmission, with reversed polarity charging function and call ID display function
.


Specification



1, Low cost solution for analog voice access for end users or big customers
2, 8 FXO ports for connection to PABX or PSTN.
3, 8 FXS ports for connection of phones (internet dial-up) or faxes.
4, Up-link of the voice equipment is E1.
5, All FXS(FXO) channels support reversed polarity charging function and call ID display function.
6, Easy installation, fast configuration and no maintenance.

Specification:

E1 interface
---Rate: 2.048Mbit/s±50ppm
---Impedance:75Ω BNC(unbalanced)
---Interface standard: G.703 and G.704

POTS port
---FXS port:
ring voltage 75 V, ring frequency 25 Hz, impedance 600 Ohm(for -48VDC)
ring voltage 57 V, ring frequency 50 Hz, impedance 600 Ohm (for 220VAC)
---FXO port:
Ringing voltage 35V, Ringing frequency 17-60HZ, Impedance: 600Ω
(All telephone channels support inversed polarity charging function and caller ID display function)

Power supply
--- -48VDC or 220VAC
---- <30W

Operating condition:
--- temperature-40℃ ~ +70℃
--- Humidity 95%, No corrosive and dissolvent gas, no dust


Solutions



.

Model

HYC- -3808

8 FXS/FXO/E&M over E1 Datasheet.
