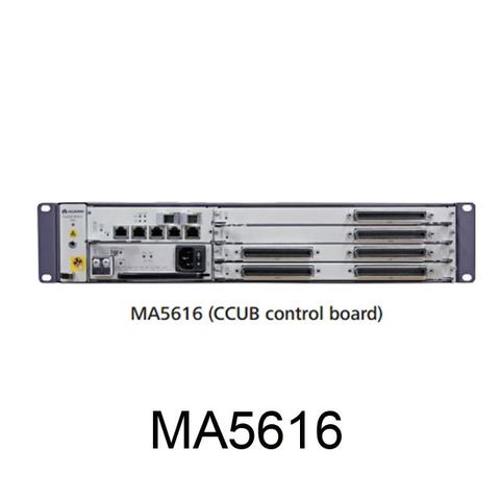

New control board CCUB MA5616 IP DSLAM
Short Description:
| Performance Parameter | Description |
| CCUB | |
| CCUC | CCUE (Upstream Transmission through Two GPON Uplink Ports) |
| System packet forwarding rate | |
| x digital subscriber line (xDSL) access: 15.6 Mpps | |
| xDSL access: 15.6 Mpps | xDSL access: 51 Mpps |
| LAN access/P2P configuration: 30 Mpps | LAN access/P2P configuration: 51 Mpps |
| Control board switching capacity | |
| 10.4 Gbit/s | |
| 20 Gbit/s | 28 Gbit/s |
| System switching capacity | |
| xDSL access: 10.4 Gbit/s | |
| xDSL access: 10.4 Gbit/s | xDSL access: 28 Gbit/s |
| LAN access/P2P configuration: 20 Gbit/s | LAN access/P2P configuration: 28 Gbit/s |
| Switching capacity on the backplane bus | |
| 3GE bus: 30 Gbit/s | |
| 3GE bus: 30 Gbit/s | MABA backplane: 30 Gbit/s |
| Universal test and operations PHY interface for ATM (UTOPIA) bus: 6.4 Gbit/s | |
| Universal test and operations PHY interface for ATM (UTOPIA) bus: 6.4 Gbit/s | MABB backplane (vectoring): 110 Gbit/s |
