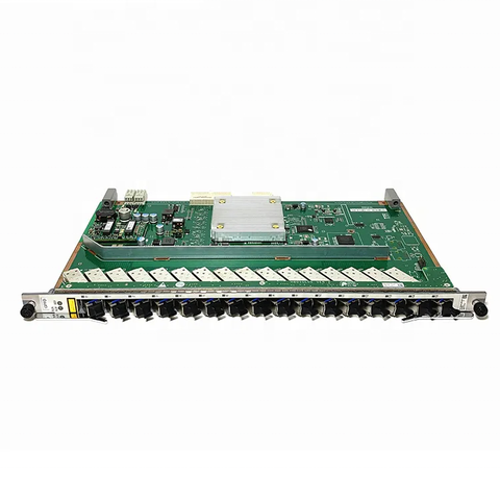

HW Service Board GPFD 16 Ports C + GPON OLT Interface Board GPFD C+ C++ H805/H806 Service Board For MA5600T MA5603T MA5683T OLT
Short Description:
| Specification | GPFD |
| Port quantity | 16 |
| MAX Split ratio (Class B+) | 1: 64 |
| MAX Split ratio (Class C+/Class C++) | 1: 128 |
| D-CMTS | No |
| ONU-based shaping | Yes |
| Optical performance monitor | Yes |
| RSSI detection and controlled optical signal transmission of the optical module | Yes |
| ONU-based rate limitation | √ |
| CAR group | √ |
| Temperature query and high temperature alarm | Yes |
| Automatic power shutdown in case of a high temperature | Yes |
| Maximum differential fibre distance (km) | 40 |
| Maximum Number of Service Flows Supported by the Board | 16368 |
| Maximum Number of MAC address Supported by the Board | 32768 |
| Available DBA bandwidth (based on single port) (kbit/s) | 1238784 |
| Number of T-CONT supported by each GPON port | 1024 |
| Board supporting downstream FEC | Yes |
| Board supporting upstream FEC | Yes |
| Rogue ONT detection | Yes |
