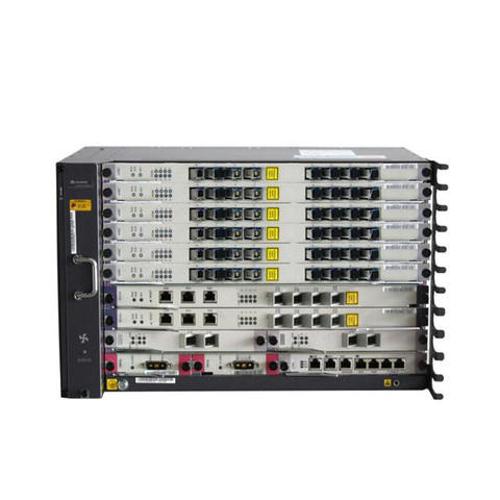

MA5683T SFP EPON GPON OLT
Short Description:
| Model No. | |
| MA5680T | |
| MA5683T | MA5608T |
| Dimension: | |
| 490*275.8*447.2mm | |
| 442*283.2*263mm | 442*233.5*88mm |
| Operating Environment | |
| Temperature: -25℃~+55℃ Humidity: 5%~95% (non-condensing) | |
| Temperature: -40℃~+65℃ Humidity: 5%~95% (non-condensing) | Temperature: -40℃~+65℃ Humidity:5%~95% (non-condensing) |
| Power Supply Parameters | |
| -48V DC input Supports dual power protection Working Voltage range \-38.4V~-72V | |
| -48V DC input Supports dual power protection Working Voltage range\ -38.4V~-72V | -48V DC input Supports dual power protection Working Voltage range \ -38.4V~-72V Support 220V / 110V AC input |
| Backplane Exchange capacity | |
| 3.2Tbit/s | |
| 1.5Tbit/s | 720Gbit/s |
| Control Board Exchange \Capacity | |
| 1920 Gbit/s | |
| 960Gbit/s | 512Gbit/s |
| Access Capacity | |
| 128*10G EPON 64*10G GPON 128*EPON 256*GPON 768*GE | |
| 48*10G EPON 24*10G GPON 48*EPON 96*GPON 288*GE | 16*10G EPON 8*10G GPON 16*EPON 32*GPON 96*GE |
| Access Type | Upstream interface: 10GE optical, GE optical/electricity Business interface: EPON optical port, GPON optical port, 10G EPON optical port, P2P FE optical port, P2P GE optical port, Ethernet optical interface |
| System Performance | Layer 2 / Layer 3 wire-speed forwardi Support static router /RIP/OSPE.MPLS BITS/E1/STM-1/Ethernet/1588v2/1PPS+ToD clock Maximum support 1:256 splitting Maximum support 60KM logical distance |
