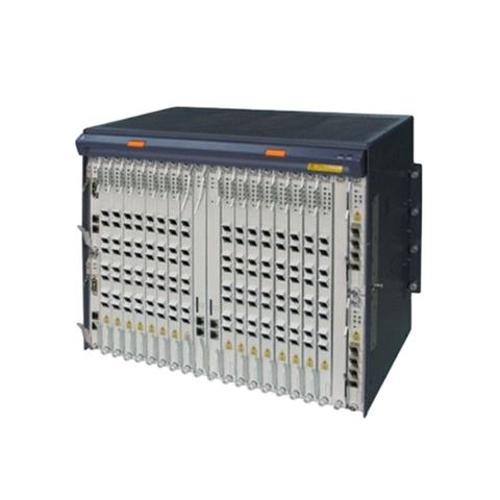

ZTE GPON OLT C300 GPON GTGH GTGO With SFP and AC Power
Short Description:
| Parameter | ZTE ZXA10 C300 |
| Capacity and Performance | |
| Backplane Capacity(bps) | 3.2T |
| Exchange Capacity(bps) | 800G |
| MAC address capacity | MAX512K |
| Main control exchange board | 2(main and spare) |
| Service board | 14 |
| EPON capacity | single board:8*PON; single chassis:112*PON |
| Uplink interface | |
| GE | Single board: 4*GE(4 optical); |
| 10GE | Per board:4*10GE(optical); |
| User interface | |
| PTP | Per board:16*FE or GE |
| TDM interface | |
| E1/T1 | Per card:32*E1/T1; |
| STM-1/STM-4 | Per board:2*STM-1or 1*STM-4; |
| BITS interface | |
| BITS | 2input/1output or 1input/2output |
| Power | |
| 2lineDC(-48V) | |
| DC:-38V~-57V | |
| Electrical Properties | |
| Dimension(mm) | 19inch chassis 482.6*443.7*270mm |
| Weight | 36.6kg(full) |
| Heat | Fan |
| Install | Rack |
