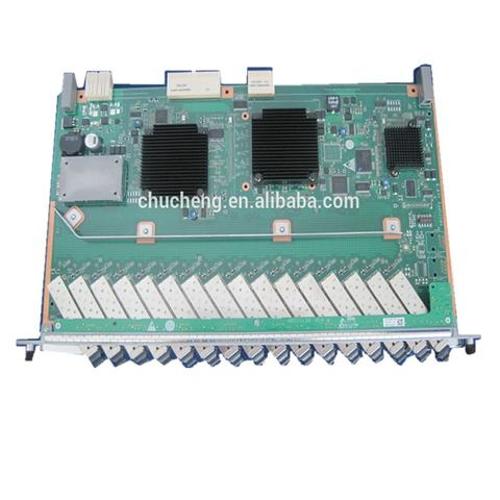

MA5608T MA5683T MA5600T GPFD 16 ports GPON OLT Control Board
Short Description:
| Specification | GPFD |
| Product name | GPFD GPON Board |
| Port quantity | 16 |
| MAX Split ratio (Class B+) | 0.086111111 |
| MAX Split ratio (Class C+/Class C++) | 0.130555556 |
| D-CMTS | No |
| ONU-based shaping | Yes |
| Optical performance monitor | Yes |
| RSSI detection and controlled optical signal transmission of the optical module | Yes |
| ONU-based rate limitation | √ |
| CAR group | √ |
| Temperature query and high temperature alarm | Yes |
| Automatic power shutdown in case of a high temperature | Yes |
| Maximum differential fibre distance (km) | 40 |
| Maximum Number of Service Flows Supported by the Board | 16368 |
| Maximum Number of MAC address Supported by the Board | 32768 |
| Available DBA bandwidth (based on single port) (kbit/s) | 1238784 |
| Number of T-CONT supported by each GPON port | 1024 |
| Board supporting downstream FEC | Yes |
| Board supporting upstream FEC | Yes |
| Rogue ONT detection | Yes |
| Number of ONUs supported by a GPON port | 128 |
| Number of GEM ports supported by each board | 16384 |
| Number of GEM ports s upported by each GPON port | 3872 |
| Number of service ports supported by each GEM port | 8184 |
| HQoS (four levels) | H802GPFD: × |
| 9216-byte Jumbo frames | H802GPFD: × |
| Power budget supported by a GPON port | Class B+ (28.5 dB, mostly used), |
| Minimum bandwidth supported by a T-CONT | 1 Mbit/s (in the minimum delay mode) |
| Dimensions (W x D x H) | 22.86 mm x 237.00 mm x 395.40 mm |
