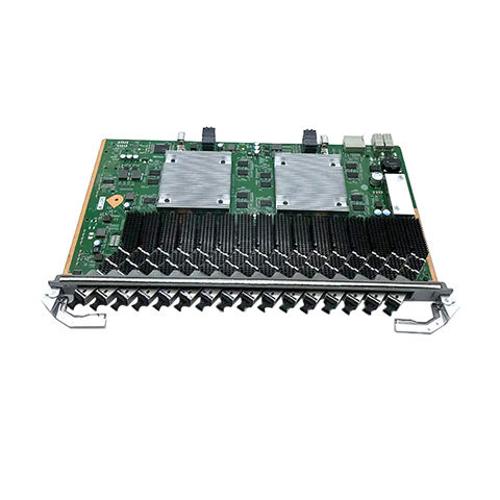

OLT Huawei CSHF for MA5800 16-port XG-PON and OLT GPON 16 Ports Combo interface board H901CSHF

Short Description:


Product Detail

The CSHF board supports the following features and specifications:
16 GPON SFP ports
A maximum of 1:128 split ratio
Class B+/C+/C++ one-fiber bi-directional optical modules
Received signal strength indicator (RSSI) detection and optical signal transmission control of the optical module
ONU-based traffic shaping
Temperature reading and high-temperature alarm
Automatic power-off in case of high temperature
Upstream and downstream forward error correction (FEC)
Type B/Type C protection
L3VPN and D-CCAP networking
Rogue ONU detection
L3VPN and D-CCAP networking
Optical power budget of the GPON port
o Class B+ optical module with a 28.5 dB power budget (used in most cases)
o Class C+ optical module with a 32 dB budget (used for long-distance transmission)
o Class C++ optical module with a 35 dB budget (used for long-distance transmission)
Usage
FTTC/B/D, D-CCAP, FTTH, FTTO/FTTM
