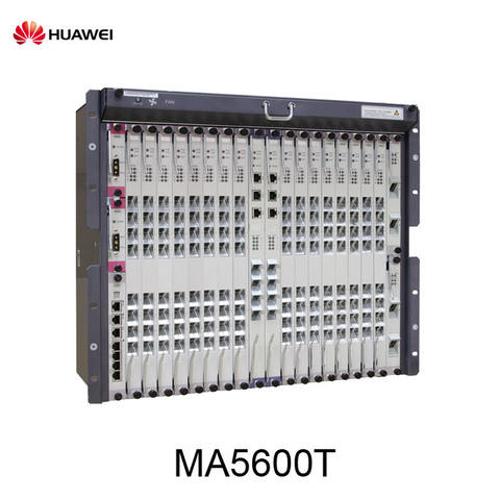

Huawei Optical fiber unit OLT MA5600T equipment
Short Description:
| Board configuration | |
| 2 slots for control boards16 slots for service boards1 slot for the universal interface board2 slots for upstream interface boards2 slots for power interface boards. | 2 slots for control boards14 slots for service boards1 slot for the universal interface board2 slots for upstream interface boards2 slots for power interface boards. |
| Switching capacity of the backplane bus | 3.2 Tbit/s |
| Supported control board and its switching capacity | SCUN: 480 Gbit/s in active/standby mode or 960 Gbit/s in load-sharing modeSCUH: 960 Gbit/s in active/standby mode or 1920 Gbit/s in load-sharing modeSCUB: 48 Gbit/sSCUF: 128 Gbit/s |
| System Layer 2 packet forwarding rate | SCUN: 480 Gbit/s in active/standby mode or 960 Gbit/s in load-sharing modeSCUH: 960 Gbit/s in active/standby mode or 1920 Gbit/s in load-sharing modeSCUB: 48 Gbit/sSCUF: 128 Gbit/s |
| Switching/Forwarding delay | Short forwarding delay: The 100 Mbit/s Ethernet port sends the 64-byte Ethernet packets at a delay shorter than 20 μs. |
| BER in full load | BER of a port when the port transmits data in full load < 10 e-7 |
| System reliability specifications | System: redundant configuration.System availability for the typical configuration: > 99.999%Mean time between failures (MTBF): about 45 years.NOTE:Due to different network environments and different boards used by devices, the above-mentioned MTBF (45 years) of the MA5600T/MA5603T/MA5608T is only for reference. The average repair time for field replaceable units (FRUs) is about 2 hours. The preceding values are only for reference. For details, contact the related Huawei engineers. |
| Maximum number of ADSL2+ ports in a subrack | |
| 1024 | 896 |
| Maximum number of VDSL2 ports in a subrack | |
| 1024 | 896 |
| Maximum number of EFM SHDSL ports in a subrack | |
| 512 | 448 |
| Maximum number of TDM SHDSL ports in a subrack | |
| 256 | 224 |
| Maximum number of POTS ports in a subrack | |
| 1024 | 896 |
| Maximum number of ISDN BRA ports in a subrack | |
| 512 | 448 |
| Maximum number of ISDN PRA ports in a subrack | |
| 64 | 56 |
| Maximum number of GPON ports in a subrack | |
| 256 | – |
| Maximum number of 10G GPON ports in a subrack | |
| 128 | – |
| Maximum number of P2P FE ports in a subrack | |
| 768 | – |
| Maximum number of P2P GE ports in a subrack | |
| 768 | – |
| Maximum number of upstream ports (GE ports in the GIU slot) in a subrack | |
| 8 | 8 |
| Maximum number of upstream ports (10GE ports in the GIU slot) in a subrack | |
| 4 | 4 |
| Maximum number of upstream ports (PON ports in the GIU slot) in a subrack | |
| 2 (in the active/standby mode) | 2 (in the active/standby mode) |
| Maximum number of extended subracks connected to a master subrack | |
| 32 | 32 |
| Operating environment | Operating temperature (indoor cabinet):A cabinet configured with a subrack: -25°C to +65°CA cabinet configured with 2 subracks: -25°C to +55°COperating humidity: 5% RH to 95% RHAtmospheric pressure: 61 kPa to106 kPaAltitude: ≤ 4000 m |
