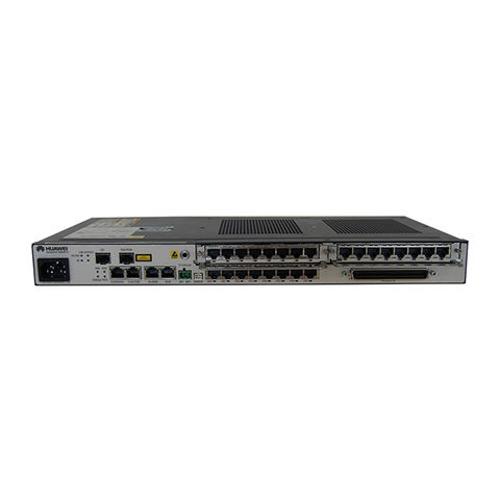

huawei fiber optic MA5612 FE E1 POTS MDU GPON EPON ONU
Short Description:
| Dimensions (H×W×D) | 43.6mm × 442mm × 245mm |
| Network-side port | The MA5612 provides two uplink ports that use the SFP optical modules and automatically adaptto multiple modes, including GPON and GE. The two uplink ports can be configured as follows:• 2 × GPON • 2 × GE (optical) • 1 × GE (optical) + 1 × GPON |
| User-side port | The MA5612 supports fixed configurations and provides two slots. The fixed configurations are as follows:• 2 GE (electrical) + 6 FE (electrical) • 2 GE (electrical) + 6 FE (electrical) + 16 POTS • 2 GE (electrical) + 6 FE (electrical) + 16 POTS + 1 RF The two slots can house the following boards:• Board providing 8 FE ports • POTS board providing 16 ports • Board providing 8 E1 ports |
| Operating temperature | -40°C to 65°C; startup at -25°C |
| Humidity | 5% to 95% (non-condensing) |
| Heat dissipation mode | Providing fans for heat dissipation; the fans can adjust rotating speed intelligently |
| Lightning protection capability | GE/FE: 6 kVPOTS: 4 kV |
| Power supply | AC: 220 V/110 VDC: -48 V |
| Backup power | 12 V battery |
| Weight | 3.7 kg (empty chassis)4.22 kg (full configuration) |
