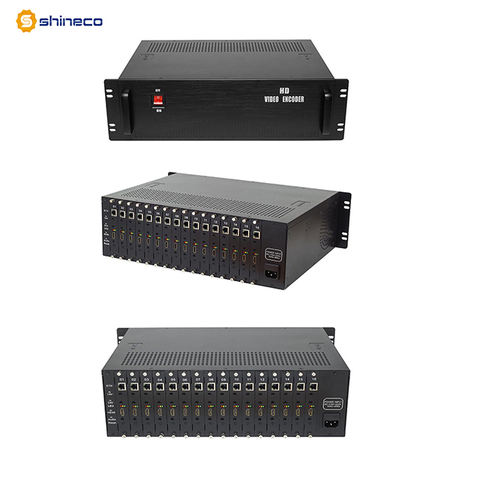

16 channel HD-MI plus 32 channels AV Input H 264 Video Encoder with Netplay
Short Description:
| Video | Video compression: H.264/AVC High Profile Level 4.0Video inputs: 16*HD-MI+AV 1.3a version (support HDCP protocol)Analog video input mode: PAL, NTSCResolution: 1920*1080_60P, 1920*1080_60i, 1920*1080_50i, 1280*720_60P, 1280*720_50P Bit-rate: 0.8 ~ 12Mbps, CBR/VBRVideo pre-processing: De-interlacing, Noise reduction, Sharpen |
| Audio | Audio compression: AAC, MP3Sampling rate: Adaptive, output sample rate optionalSampling accuracy: 24-bitBit Rate: 32K,44.1K,48K,64K,96K,128K,160K,192KEncoding bit rate: 64 ~ 384Kbps |
| IP output | Transport protocol:TS over IP output,HTTP/RTMP/RTSP/HTTP/UDP protocol |
| System | Program stream: HTTP,UDP,RTSP,RTMP,ONVIFConfiguration Interface: Web operationUpgraded: Can be via network for software upgraded.Connector: RJ45, 1000M Ethernet interface. |
| Physical and power | Voltage: AC220V±10% 50/60 HzConsumption: 80WOperating temperature: -20~80°CDimensions: 484mm(W)*365mm(D)*148mm(H)Weight: 9.6Kg/pc |
