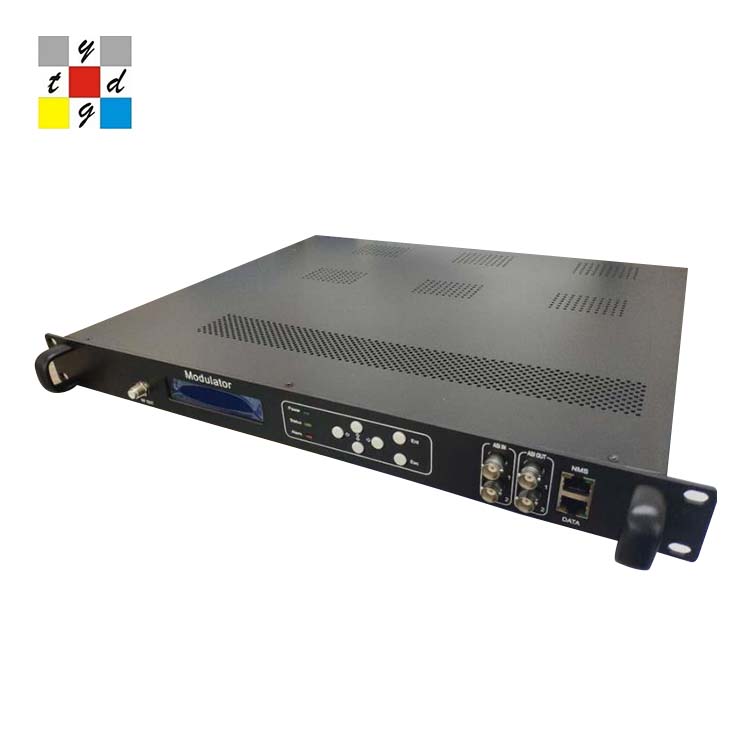

Yatai New Store Digital Tv Dvb S2 4 Channel Encoder Modulator

Short Description:


Product Detail

Input 8HD inputs
Video
Resolution 1920×1080_60p 1920×1080_50p
Encoding MPEG4 AVC/H.264 High Profile Level 4.0 for HD
Bit-rate 0.8Mbps~19ps (each channel)
Rate Control CBR/VBR
GOP Structure IBBP
Advanced Pretreatment De-interlacing, noise reduction, sharpening
Audio
Encoding MPEG-1 Layer 2, HE-AAC,LC-AAC
Sampling rate 48KHz
Resolution 24-bit
Bit-rate 64Kb/s~384Kb/s each channel
Multiplexing Multiplex 1ASI input and 8 channels hd encoding programs
Stream output 2×ASI outputs, BNC interface(support PID filter and pass, support real time monitoring of the output stream.
System function LCD/keyboard operating, network management(SNMP), English control interface
General
Dimensions (W×D×H) 482mm×455mm×44.5mm
Approx weight 3.2
Temperature range 0~45℃(Operating), -20~80℃(Storage)
Power Requirements AC 110V±10%, 50/60Hz or AC 220V±10%, 50/60Hz
Power consumption 25W
