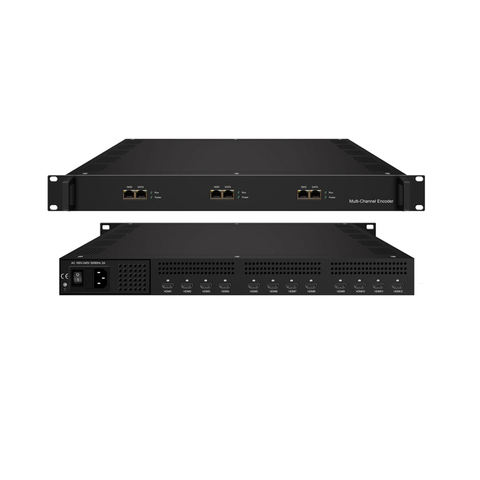

4/8/12 Channel HD MPEG4 H.264 HEVC H265 CATV Encoder replace of Fujitsu chip
Short Description:
| Input | 4/8/12×HDMI(1.4) input for option, HDCP 1.4 |
| Video Encoding | |
| Encoding Format | HEVC/ H.265 , MPEG 4 AVC/H.264 |
| Input Resolution | Available Output Resolution |
| 1920x1080P@60/59.94 | 1920x1080/1280x720/720*576/720*480P@60/50/30/25/24 |
| 1920x1080I@60/59.94 | 1920x1080/1280x720/720*576/720*480P@30/25/24 |
| 1920x1080P@50 | 1920x1080/1280x720/720*576/720*480P@50/30/25/24 |
| 1920x1080I@50 | 1920x1080/1280x720/720*576/720*480P@25/24 |
| 1280x720P@60/59.94 | 1280x720/720*576/720*480P@60/50/30/25/24 |
| 1280x720P@50 | 1280x720/720*576/720*480P@50/30/25/24 |
| 720*576I@50 | 720*576/720*480P@25/24 |
| 720*480I@60 | 720*480P@30/25/24 |
| Chroma | 4:2:0 |
| Bitrate | 1Mbps~15Mbps (each channel) |
| Rate Control | CBR/VBR |
| GOP Structure | IP, IBBP, IBBBP |
| Advanced Pretreatment | Noise reduction |
| Audio Encoding | |
| Encoding Format | MPEG-1 Layer 2, LC-AAC, HE-AAC, HE-AAC V2, AC3 Passthrough (optional) |
| Sampling rate | 48KHz |
| Bit-rate (each channel) | 48Kbps~384Kbps (MPEG-1 Layer 2 & LC-AAC) 24 Kbps~128 Kbps (HE-AAC) 18 Kbps~56 Kbps (HE-AAC V2) |
| Stream output (per module) | 1 MPTS and 4 SPTS output over UDP/RTP/RTSP, Base-T Ethernet interface (1000M/100M self-adaption) (unicast/ multicast), IP null packet filter |
| System | Web based management |
| Miscellaneous | |
| Dimension (W× L× H) | 482mm×328mm×44mm |
| Approx weight | 5kg |
| Temperature | 0~45℃(work), -20~80℃(Storage) |
| Power | AC 100V-220V±10%, 50/60Hz |
