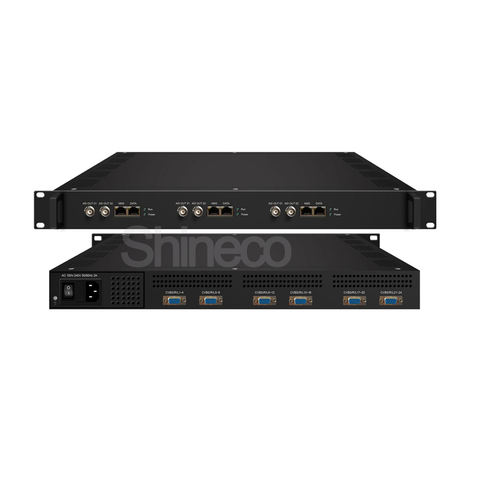

8/16 Channel AV To RF Modulator
Short Description:
| Input | 8/16/24 CVBS inputs , RCA interface |
| Video | |
| Resolution | 720×576i, 720×480i, |
| Encoding | MPEG4 AVC/H.264 |
| Bit-rate | 1Mbps~7Mbps each channel |
| Rate Control | CBR/VBR |
| GOP Structure | IPP |
| Audio | |
| Encoding | MPEG-1 Layer 2 |
| Sampling rate | 48KHz |
| Resolution | 24-bit |
| Audio Gain | 0-255 adjustable |
| Bit-rate | 64/128/192/224/256/320/384Kbps each channel |
| Stream output | IP (1*MPTS and 8*SPTS) output over UDP and RTP, 1000 Base-T Ethernet interface (multicast) |
| System function | Network management (WEB) |
| Miscellaneous | |
| Dimension(W×L×H) | 440mm×410mm×44.5mm |
| Approx weight | 5kg |
| Environment | 0~45℃(work);-20~80℃(Storage) |
| Power requirements | AC 110V± 10%, 50/60Hz, AC 220 ± 10%, 50/60Hz |
