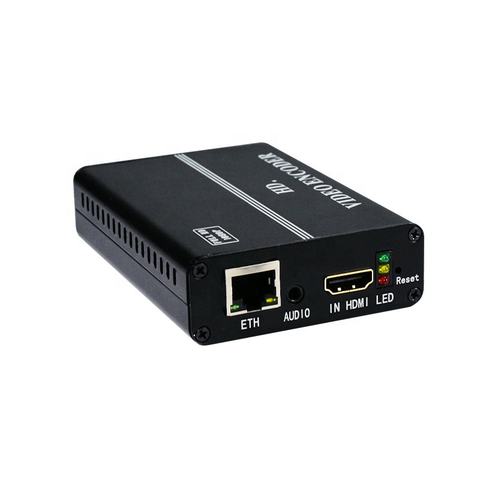

H.265 HEVC H.264 AVC 4k HD HDMI USB to IP Video Stream Encoder RTMP SRT Live Streaming Streamer Encoder
Short Description:
| Product model | 1U 1channel HDMI HD encoder |
| Input | 1-channel HDMI input, 1-channel 3.5MM audio input |
| Output | 1-channel IP signal output |
| Video | |
| Input resolution | 1920x1080p/1920x1080i/1280x720p/720*576i/720*576p /640*480i etc |
| Coding standard | H.264 |
| Coding level | H.264 BASELINE PROFILE H.264 MAIN PROFILE H.264 HIGH PROFILE |
| Encoded size | 640*360~1920*1080 |
| Video bit rate | Rate control: CBR/VBR 16KBIT/S~12MBIT/S |
| Video frame rate | 5-60 FPS |
| OSD | Text, Image |
| Audio | |
| Input selection | 1 channel embedded audio HDMI, 1 -channel 3.5MM independent audio (Support audio gain) |
| Audio coding | AAC/MP3/G.711 |
| Audio bit rate | 64Kb/s~384Kb/s |
| Sampling rate | 32000,44100,48000 etc |
| IP output | 1 RJ 100M / 1000M adaptive Ethernet port, dual-stream( 264 TS stream) |
| System | |
| Network protocol | Supports HTTP, RTSP, RTMP, UDP, ONVIF,FLV,HLS multicast, unicast |
| Configuration management | User interface, remote upgrade, Andriod /IOS APP, multiple management platform |
| The common use | |
| Power supply | AC 100~240V |
| power consumption | <100W |
| Size | 330mm * 435mm *90mm(length*width*height) |
| Operating temperature | -20℃+ 60℃ |
| Working humidity | <90%,Non-condensing |
| Weight | 4.3KG |
