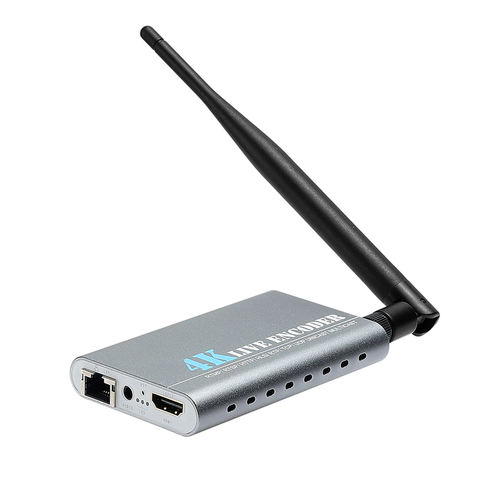

IPTV Solution HEVC H.265 4K60 HDMI HDCP 2.2 Encoder
Short Description:
| Product model | SNK-1W HDMI 4K Encoder |
| Input | 1Channel HDMI input, 1 Channel audio input |
| Output | 1 channel IP signal output,WIFI ouput |
| SD card | Maximum 256G |
| Video | |
| Input resolution | Up to 4K-3840*2160, standard HDMI resolution |
| Coding standard | H.265/ H.264 |
| Coding level | H.265 MAIN PROFILEH.264 BASELINE PROFILEH.264 MAIN PROFILEH.264 HIGH PROFILE |
| Encoded size | 640*360~3840*2160(Can customize) |
| Video bit rate | Rate control: CBR/VBR 16KBIT/S~50 MBIT/S |
| Video frame rate | 4K 30fps,1080P 60fps |
| OSD | Text, Image |
| Audio | |
| Input selection | 1 channel embedded audio hdmi, 1 channel 3.5MM independent audio, support audio gain |
| Audio coding | AAC/ MP3/ G.711 |
| Audio bit rate | 64Kb/s~384Kb/s |
| Sampling rate | 32000,44100,48000 etc |
| IP output | 1 RJ 100M / 1000M adaptive Ethernet port, dual-bitrate( H.265/264 TS stream) |
| System | |
| Network protocol | HTTP, RTSP, RTMP, ONVIF, HLS, UDP multicast, unicast |
| Configuration management | User interface, remote upgrade, Andriod APP, multi-one management platform |
| Power supply | 5V~2A |
| power consumption | 5W |
| Size | 103mm * 60mm * 15mm(L*W*H) |
| Operating temperature | -20℃+ 60℃ |
| Working humidity | <90%,Non-condensing |
| Weight | 0.1KG |
