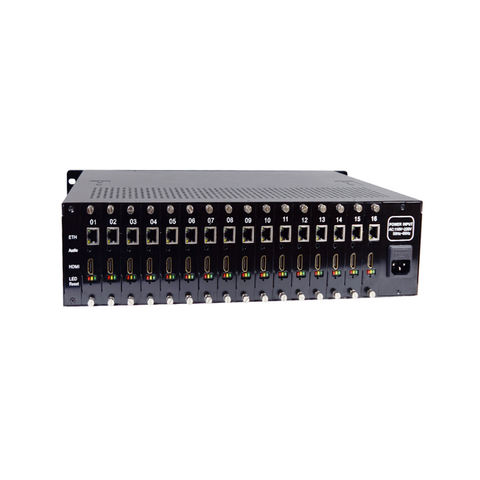

8ch 16 ch HD Video H.264 H.265 IPTV NDI SRT 4K Encoder

Short Description:


Product Detail

Product model 4K Encoder
Input 1 HDMI input up to 16
Output 1 channel IP signal output
SD Card 256G
Video
Input resolution 3840*2160/2048*1152/1920x1080p/1280x720p/720*576i/640*480i etc
Coding standard H.264/H.265
Coding level H.265 main profile        H.264 BASELINE PROFILE H.264 MAIN PROFILE H.264 HIGH PROFILE
  Encoded size 640*360~3840*2160( customized)
Video bit rate Rate control: CBR/VBR 16KBIT/S~50MBIT/S
Video frame rate 4K 30fps,1080P 60fps
OSD Text ,images
Audio
Input selection 1 channel embedded audio hdmi, 1 channel 3.5MM independent audio  Support audio gain
Audio coding AAC/MP3/G711
Audio bit rate 64Kb/s~384Kb/s
Sampling rate 32000,44100,48000 etc
IP output 1 RJ 1000M adaptive Ethernet port, TS stream standard, dual-stream, ONVIF protocol
System
Network protocol Supports HTTP, RTSP, RTMP, ONVIF,HLS, UDP multicast, unicast
Configuration management Support IE configuration, remote upgrade
The common use
Power supply 12V 2A
power consumption 5W
Size 102mm * 60mm *15mm(length*width*height)
Operating temperature -20℃+ 60℃
Working humidity <90%,Non-condensing
Weight 0.1KG

xxxxxxx.
