Input
|

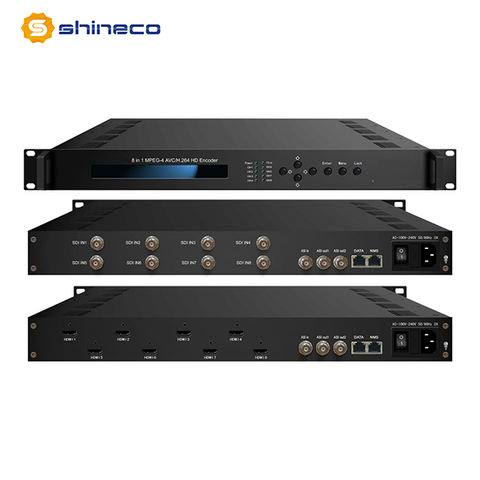

8×HD-MI inputs (8 HD-SDI inputs)
|
|
Video
|
|
Resolution
|
1920*1080_60p, 1920*1080_50p
|
|
Encoding
|
MPEG4 AVC/H.264 High Profile
|
|
Bit-rate
|
0.8Mbps~20Mbps (each channel)
|
|
Rate Control
|
CBR/VBR
|
|
Advanced Pretreatment
|
De-interlacing, Noise Reduction, Sharpening
|
|
Audio
|
|
Encoding
|
MPEG-1 Layer 2 (HE-AAC V2/AAC-LC optional)
|
|
Sampling rate
|
48KHz
|
|
Bit-rate
|
64Kb/s~384Kb/s each channel
|
|
Multiplexing
|
1 ASI input multiplexed with local 8 channels of TS (4 channels)
|
|
Stream output
|
2*ASI output, BNC interface
|
|
System function
|
LCD/keyboard operating, NMS supporting
|
|
Miscellaneous
|
|
Dimension (W× L× H)
|
440mm×410mm×44.5mm
|
|
Approx weight
|
4kgs
|
|
Temperature
|
0~45°C(work), -20~80°C(Storage)
|
|
Power
|
AC 100V-220V±10%, 50/60Hz
|
|
Consumption
|
25W
|
