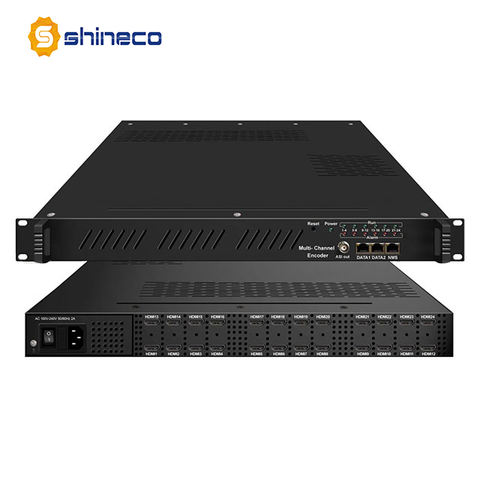

Input
|
24*HD-MI input
|
|
Video
|
|
Resolution
|
1920×1080_60P, 1920×1080_50P,
1920×1080_60i, 1920×1080_50i,
1280×720_60P, 1280×720_50P,
1720×576_50i, 720×480_60i
|
|
Encoding
|
MPEG-4 AVC/H.264
|
|
Bit-rate
|
0.8Mbps~19Mbps each channel
|
|
Rate Control
|
CBR/VBR
|
|
GOP Structure
|
IBBP
|
|
Advanced Pretreatment
|
De-interlacing, Noise reduction, Sharpening
|
|
Audio
|
|
Encoding
|
MPEG-1 Layer 2(HE-AAC V2, LC-AAC Optional), AC3 pass through
|
|
Sampling rate
|
48KHz
|
|
Resolution
|
24-bit
|
|
Bit-rate
|
64kbps~384kbps each channel
|
|
Multiplexing
|
Multiplex with local 24 channels TS
|
|
Stream output
|
1-way ASI output, BNC interface
|
|
System function
|
LCD/keyboard, network management(WEB)
Chinese and English language
|
|
Miscellaneous
|
|
Dimension(W×L×H)
|
482mm×410mm×44mm
|
|
Approx weight
|
8kg
|
|
Environment
|
0~45℃(work);-20~80℃(Storage)
|
|
Power requirements
|
AC 110V± 10%, 50/60Hz, AC 220 ± 10%, 50/60Hz
|
|
Power consumption
|
20W
|
