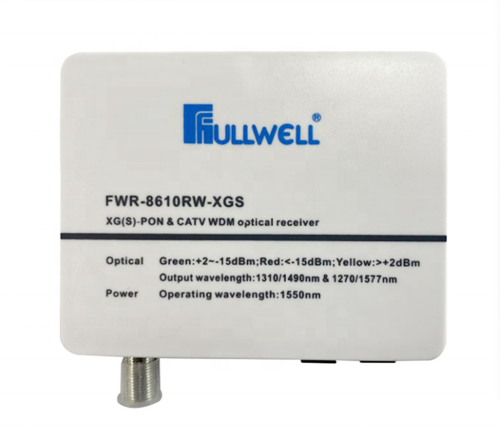

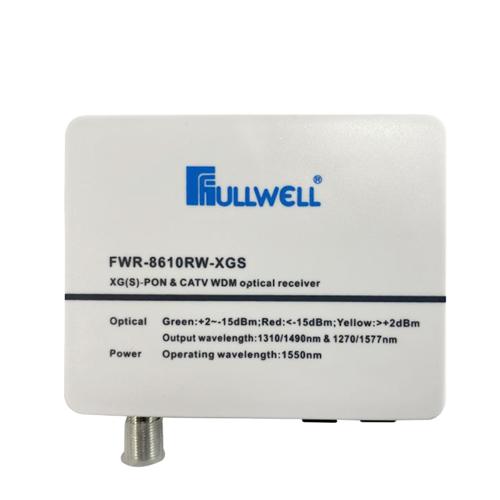

FTTH/HFC G-PON XGS PON NG-PON2 1270/1577&1310/1490+1550 wavelength active CATV WDM Optic node optical receiver
Short Description:
| Items | |
| Unit | Parameter |
| Input Wavelength | |
| (nm) | 1310,1490,1550 (Customized 1270/1577nm) |
| Output Wavelength | |
| (nm) | 1310,1490 (Customized 1270/1577nm) |
| Operation Wavelength | |
| (nm) | 1540~1560 |
| Channel Separation | |
| (dB) | ≥40 (1310/1490nm and 1550nm) |
| Responsivity | |
| (A/W) | ≥0.9 |
| Receiving Power Range | |
| (dBm) | +2~-18 |
| Reflection Loss | |
| (dB) | ≥55 |
| Fiber Link | |
| / | SC/APC |
| PON Link | |
| / | SC/UPC (Optional SC/APC) |
| Bandwidth/Flatness | |
| MHz/dB | 47-1000/≤±1 |
| Output Level | |
| dBuv | |
| 1 RF | AGC: 82±1/(-2~--12dBm) |
| 2RF(Optional) | AGC: 78±1/(-2~--12dBm) |
| Adj. Range of Output Level | |
| dB | 0~15(Customized) |
| Reflection Loss | |
| dB | ≥14(75Ω Characteristic Impedance) |
| RF Output Interface | |
| / | 1 Way Output Male (or Two-Way Output or Female) |
| CNR/MER | |
| dB | ≥44/34(PAL-D 60CH, OMI3.8%, -9dBm) |
| CTB/CSO/HUM | |
| dB | ≥65/≥60/≥60(-1dBm Receive) |
| Power Supply/Consumption | |
| V/W | AC100~240V→DC5/3 |
| Working/Storage Temperature | |
| ℃ | -35~50/-40~75 (Humidity 5~90%) |
| Dimension | |
| mm | 95×92×23 |
