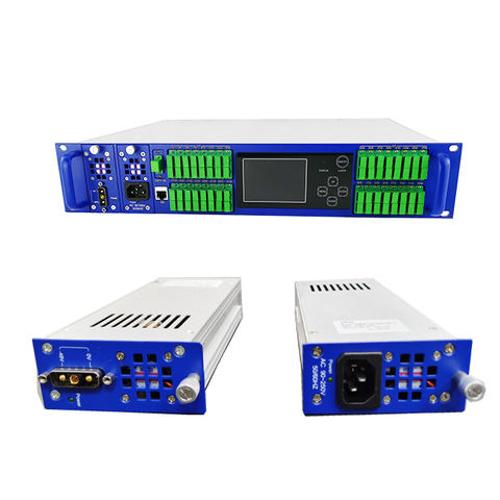

64 port high-power fiber amplifier work for CATV/FTTH

Short Description:


Product Detail

Items
Unit Performance Index
Optical Operating Wavelength
nm 1535~1565
Input Optical Power Range
dBm -10~+10
Noise Ratio
dB ≤5.0 (0 dBm,@1550nM)
Gain Flatness
dB <±0.3
Optical Power Output Stability
dB <±0.5
Polarization Sensitivity
dB <0.2
Polarization Mode Dispersion
Ps <0.5
Input End Pump Leakage Power
dB ≤-30
Output End Pump Leakage Power
dB ≤-30
Optical Input, Output Return Loss
dB >45(APC Stepped Face)
Pump Operating Number
PCs 3~5
Rated Output Power
dBm 35~45
Linker (IN)
- SC/APC
Linker (OUT)
- SC/APC
Power Supply/Consumption
V/W AC90~265 or DC-48/20
Operating/Storage Temperature
-20~65/-30~70
Operating/Storage Humidity
% 5~90
Case Size
mm 530×486×133(3U)
Network Management Connector
/ RJ45(following national network management standard, supports WEB)
Optical Switch
Insertion Loss
dB <1
Harass
dB <-60 (isolation between A and B)
Switch Time
ms <10
Switched Power Threshold Range
dBm -5~10

xxxxxxx.
