| Item |
| Unit |

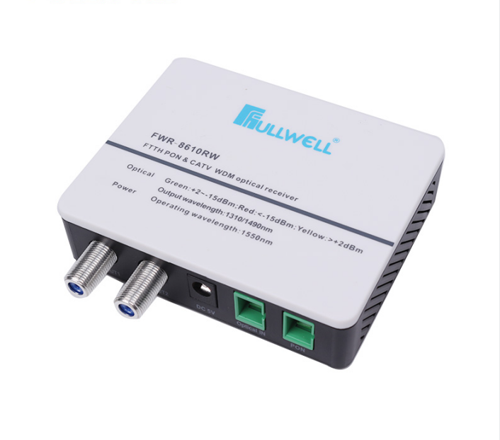

FWR-8610RW(2 RF) |
| Optical Characteristic |
| Input Wavelength |
| (nm) |
1310/1490/1550 |
| Output Wavelength |
| (nm) |
1310/1490 |
| Operation Wavelength |
| (nm) |
1540~1560 |
| Channel Separation |
| (dB) |
≥40(1310/1490nm and 1550nm ) |
| Response |
| (A/W) |
≥0.9 |
| Receive Power Range |
| (dBm) |
-18~-2 |
| Reflection Loss |
| (dB) |
≥55 |
| Fiber Linker |
| / |
SC/APC |
| Pon Linker |
| / |
SC/UPC(or SC/APC) |
| RF Characteristic |
| Bandwidth/Flatness |
| MHz/dB |
47-1000/≤±1 |
| Output Level |
| dBuv |
AGC:2*76±1/(-2~--12dBm) |
| Reflection Loss |
| dB |
≥14(75Ω characteristic impedance) |
| RF Output Interface |
| / |
2 way output |
| CNR/MER |
| dB |
≥44/34(PAL-D 60CH,OMI3.8%,-9dBm) |
| CTB/CSO/HUM |
| dB |
≥65/≥60/≥60(-1dBm receive) |
| Other Requirement |
| Power Supply/Consumption |
| V/W |
External AC100~240V→DC5/5 |
| Working/Storage Temperature |
| ℃ |
-35~50/-40~75(humidity 5~90%) |
