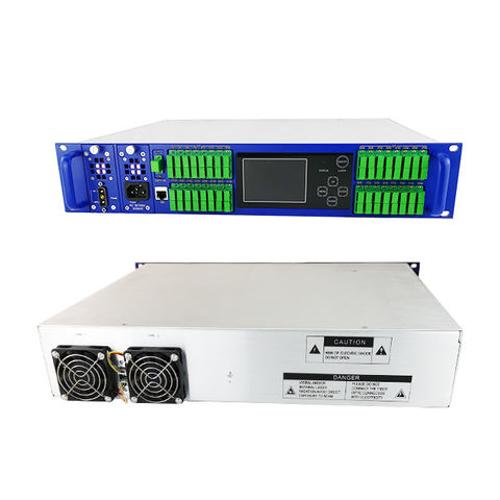

FULLWELL 64 port erbium and ytterbium co-doped high-power fiber amplifier 24dBm output
Short Description:
| Items | |
| Unit | Performance Index |
| Optical Operating Wavelength | |
| nm | 1535～1565 |
| Input Optical Power Range | |
| dBm | -10～+10 |
| Noise Ratio | |
| dB | ≤5.0 (0 dBm,@1550nM) |
| Gain Flatness | |
| dB | ＜±0.3 |
| Optical Power Output Stability | |
| dB | ＜±0.5 |
| Polarization Sensitivity | |
| dB | ＜0.2 |
| Polarization Mode Dispersion | |
| Ps | ＜0.5 |
| Input End Pump Leakage Power | |
| dB | ≤-30 |
| Output End Pump Leakage Power | |
| dB | ≤-30 |
| Optical Input, Output Return Loss | |
| dB | ＞45（APC Stepped Face） |
| Pump Operating Number | |
| PCs | 3～5 |
| Rated Output Power | |
| dBm | 35～45 |
| Linker (IN) | |
| - | SC/APC |
| Linker (OUT) | |
| - | SC/APC |
| Power Supply/Consumption | |
| V/W | AC90～265 or DC-48/20 |
| Operating/Storage Temperature | |
| ℃ | -20～65/-30～70 |
| Operating/Storage Humidity | |
| % | 5～90 |
| Case Size | |
| mm | 530×486×133（3U） |
| Network Management Connector | |
| / | RJ45(following national network management standard, supports WEB) |
| Optical Switch | |
| Insertion Loss | |
| dB | ＜1 |
| Harass | |
| dB | ＜-60 (isolation between A and B) |
| Switch Time | |
| ms | ＜10 |
| Switched Power Threshold Range | |
| dBm | -5～10 |
