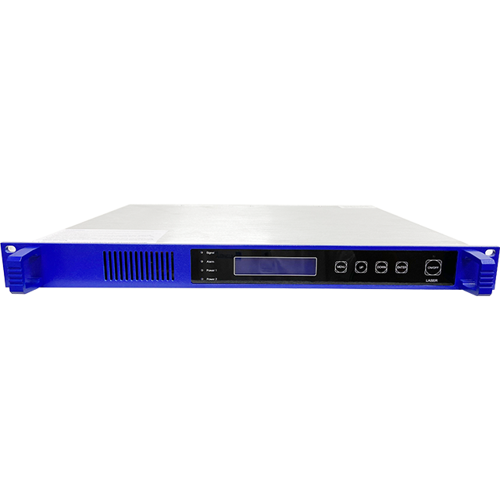

FWA-1550L DWDM EDFA ultra-low optical input power of -30dBm
Short Description:
| Items | |
| Unit | Performance Index |
| Optical Operating Wavelength | |
| nm | 1528～1565（C-Band） |
| Input Optical Power Range | |
| dBm | -30～-15 |
| Nominal optical input power | |
| dBm | -25 |
| Output Power | |
| dBm | -10～+12(Output power can be customized) |
| Noise Ratio | |
| dB | 3.8～5.5 |
| Gain Flatness | |
| dB | ＜±0.3 |
| Optical Power Output Stability | |
| dB | ＜±0.5 |
| Polarization Sensitivity | |
| dB | ＜0.2 |
| Polarization Mode Dispersion | |
| ps | ＜0.5 |
| Optical connector (IN/OUT) | |
| LC/UPC,SC/UPC,FC/UPC | |
| Pump Operating Number | |
| N | 1～3 |
| Power Supply | |
| VAC | 90～265 (Hot-pluggable dual power supply) |
| VDC | -48 (Hot-pluggable dual power supply) |
| Working Temperature | |
| ℃ | 0～50 |
| Case Size | |
| mm | 482.6×387×44 |
