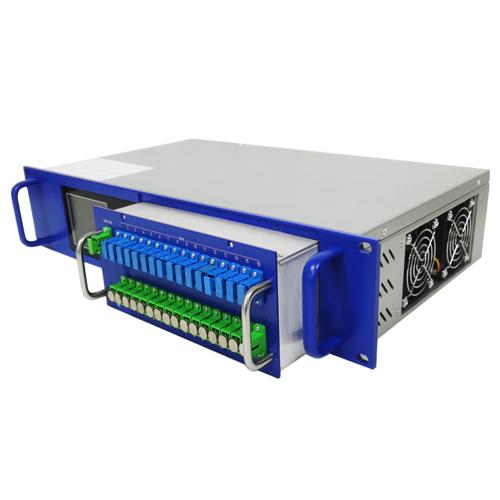

16 Port WDM EDFA with CATV output power of 23dBm

Short Description:


Product Detail

item value
Model Number FWA20P-1550H-16
Type EDFA
Place of Origin China
Zhejiang
Brand Name FULLWELL
Use FTTH
Warranty Time 24 Months
Name catv combiner / CWDM Optical Amplifier/PON + CATV input EDFA
CATV Operation wavelength 1530~1565nm
OLT pass wavelength 1490nm/1310nm
FTTx PON Technology EPON /GEPON, GPON, BPON
CATV input power -5~+10 dBm
Difference of each output power -0.5~+0.5dB
Output power adjustable range -3~0dBm
Noise figure (Pin=0dBm) 4.5~5.0dB
Opticalconnector(IN/OUT) SC/PC ,SC/APC, LC/APC
SNMP network management interface RJ45

xxxxxxx.
