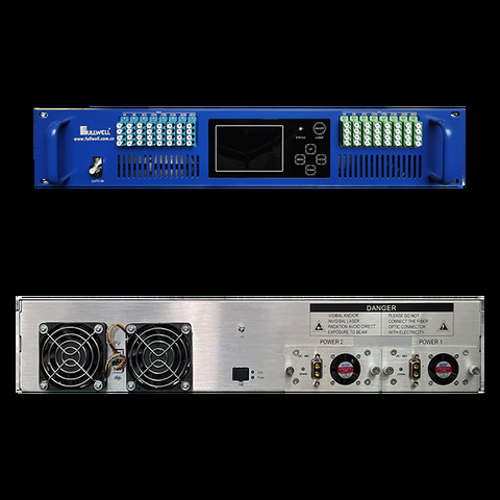

EDFA 32-port device with WDM that is compatible with LC optical connectors
Short Description:
| item | value |
| Model Number | FWAP-1550H-32x20 |
| Type | EDFA |
| Place of Origin | China |
| Zhejiang | |
| Brand Name | FULLWELL |
| Use | FTTH |
| Warranty Time | 2years |
| Name | OLT PON and CATV WDM EDFA Combiner,32ways outputs EDFA for PON Network |
| output power | 30~45dBm |
| Wavelength | 1550nm /1490nm /1310nm |
| Type | Plug-in type Dual Power |
| Opticalconnector(IN/OUT) | SC/UPC, SC/APC |
| SNMP network management interface | RJ45 |
| Storage temp. | -40~80℃ |
| Work temp. | 0~65℃ |
| Power consume | 50~150 W |
| Size (WxDxH) | 19x17x3.5 inches ( 2U ) |
