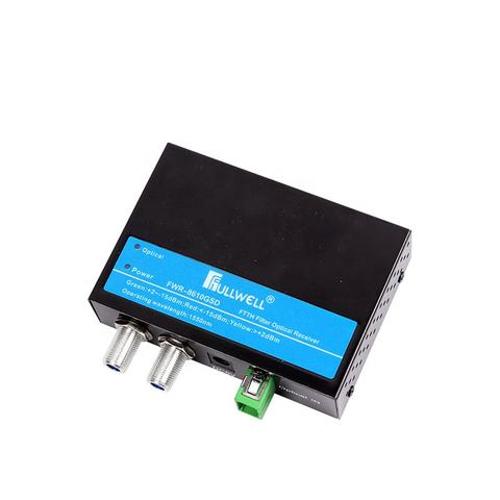

catv mini optical receiver FTTH CATV Micro Optical Receiver With Filter
Short Description:
| Item | |
| Unit | FWR-8610GS/D |
| Optical Characteristic | |
| Input Wavelength | |
| nm | 1100~1600 |
| Working Wavelength Range | |
| nm | |
| 1550 | FWR-8610GSD |
| 1310/1550 | FWR-8610GS |
| Responsivity | |
| (A/W) | ≥0.85/≥0.9 |
| Receive Power Range | |
| dB | -18~-2 |
| Reflection Loss | ≥55 |
| Fiber Linker | |
| / | SC/APC |
| RF Characteristic | |
| Bandwidth /Flatness | |
| MHz/dB | 47-862/≤±1 |
| Output Level | |
| dBuv | AGC:76*2( -5~-12dBm) |
| Output Level Adjustment | |
| dB | -5~ -18: Analog |
| Reflection Loss | ≥14(characteristic impedance75Ω) |
| RF Output Interface | 1RF |
| CNR | ≥51(-1dBm receiving,PAL-D 60CH,OMI3.8%) |
| CTB/CSO/HUM | |
| dB | ≥65/≥60/≥60(-1dBm receiving) |
| Others | |
| Power Supply / Consumption | |
| V/W | External AC155~255V→DC60 |
