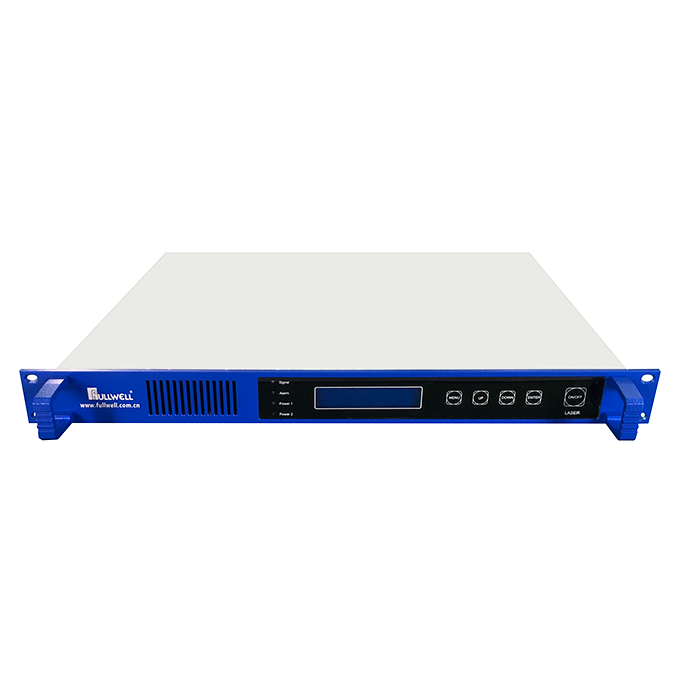

Softel 1310nm direct optical transmitter
Short Description:
| Item | |
| Unit | |
| Performance Parameter | Note |
| Laser Model | |
| DFB | XT, ORTEL, AOI, Fujitsu |
| Wavelength | |
| nm | |
| 1310±10 | Specified Before Ordering |
| Optical Modulation Method | |
| Directly Modulated | |
| Optical Output Power | |
| mW | |
| 14-28 | |
| Channel Number (Analog) | |
| N | |
| 59 | |
| Optical Connector | |
| FC/APC or SC/APC | Specified Before Ordering |
| Frequency Range | |
| MHz | |
| 47-750(862) | |
| CNR | |
| dB | |
| ≥52.0 | |
| Flatness | |
| dB | |
| ±0.83 | |
| RF Input Signal Level | |
| dBuV | |
| 72-88 | |
| C/CTB | |
| dB | |
| ≥65.0 | |
| C/CSO | |
| dB | |
| ≥65.0 | |
| RF Input Impedance | |
| Ω | |
| 75 | |
| RF Input Reflection Loss | |
| dB | |
| >16(47-550)MHz >14(550-862)MHz | |
| Power Supply | |
| V | |
| 90-265VAC | |
| Power Consumption | |
| W | |
| ≤50 | Hot-pluggable Dual Power Supply |
| Working Temperature | |
| ℃ | |
| 0-50 | Automatic Temperature Control |
| Storage Temperature | |
| ℃ | |
| -20-85 | |
| Operating Relative Humidity | |
| % | |
| 20%-85% | |
| Dimension | |
| ″ | |
| 19"x15"x1.83" | (W)x(D)x(H) |
| Network Management Interface | |
| RJ45 | Supporting Web Browser and SNMP |
