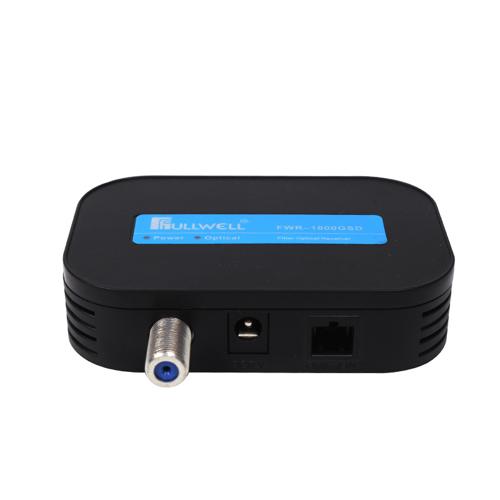

CATV FTTH Optical receiver 1550nm with AGC
Short Description:
| Item | |
| Unit | FWR-1000GSD |
| Optical characteristic | |
| input wavelength | |
| nm | 1540~1560 |
| responsivity | |
| (A/W) | ≥0.85/≥0.9 |
| receive power range | |
| dB | 2～-15 |
| reflection loss | |
| dB | ≥50 |
| fiber linker | |
| / | SC/APC |
| RF characteristic | |
| bandwidth/flatness | |
| MHz/dB | 45～1000 |
| output level | |
| dBuv | AGC: -2~-12dBm/82 |
| reflection loss | |
| dB | ≥14（characteristic impedance75Ω） |
| RF output impedance | |
| Ω | 75(RF Output Interface Metric F) |
| MER(Closed Equalization) | |
| dB | ≥25(64QAM) ≥31(256QAM) |
| MER(Open Equalization) | |
| dB | ≥32(64QAM) ≥34(256QAM) |
| Bit Error Rate(BER) | |
| / | ≤1×10-4 |
| CNR/CTB/CSO | |
| dB | ≥43/≥54/≥54(-9dBm/Nominal Level) |
| Others | |
| Power Supply/Consumption | |
| V/W | External AC90~250V→DC5/≤2 |
| Working/Storage Temperature | |
| ℃ | -25~55 / -40~75 |
| Working/Storage Humidity | |
| % | 5~90(No Condensation) |
| size | |
| mm | 90×60×22 |
