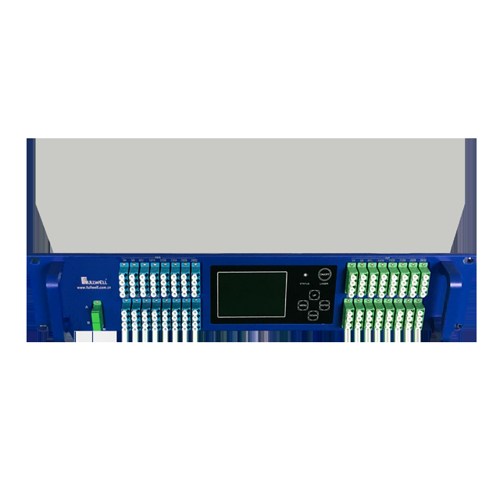

2 input TV signal for XGSPON CATV 64 Puertos EDFA With WDM 2U
Short Description:
| Items | |
| Unit | Performance Index |
| Optical Operating Wavelength | |
| nm | 1540～1560 |
| Input Optical Power Range | |
| dBm | -3～+10 |
| Nominal Input Optical Power | |
| dBm | +3 |
| Maximum Alarm Value | |
| dBm | ≥+10 front panel display alarm,buzzer ring |
| Minimum Alarm Value | |
| dBm | ＜-10 front panel display and power off |
| Noise Ratio | |
| dB | ≤5.0 (0dBm,@1550nM) |
| Gain Flatness | |
| dB | ＜±0.3 |
| Optical Power Output Stability | |
| dB | ＜±0.5 |
| Polarization Sensitivity | |
| dB | ＜0.2 |
| Polarization Mode Dispersion | |
| Ps | ＜0.5 |
| Input End Pump Leakage Power | |
| dB | ≤-30 |
| Output End Pump Leakage Power | |
| dB | ≤-30 |
| Optical Input, Output Return Loss | |
| dB | ＞45 （APC Stepped Face） |
| Pump Operating Number | |
| No. | 2～5 |
| Rated Output Power | |
| dBm | 27～45 |
| Linker(IN) | |
| - | SC/APC |
| Linker(OUT) | |
| - | SC/APC |
| C/N | |
| dB | ≥48(comment 1) |
| C/CTB | |
| dB | ≥63(comment 1) |
| C/CSO | |
| dB | ≥63(comment 1) |
| Power Supply/Consumption | |
| V/W | AC90～250 /20(hot-plugging single power) |
| Operating/Storage Temperature | |
| ℃ | -20～50/-30～70 |
| Operating/Storage Humidity | |
| % | 5～90 |
| Case Size | |
| mm | 482.6×260×88 |
| Network Management Connector | |
| / | RJ45(following national network management standard, supports WEB) |
| XG(S)-PON Optical Path with WDM | |
| PON Wavelength | |
| mm | 1310/1490 & 1270/1577 |
| PON Linker | |
| / | SC/UPC |
| PON Insertion Loss | |
| dB | ＜1.2 |
| 1550 Port Insertion Loss | |
| dB | ＜0.7 |
| Comment:1.Optical Link Test provides link index by measuring optical transmitter FWT-1550DT-10 and receiver FWR-8610RW-XGS.2.The main performance index above accords with GY/T 184-2002 CATV analog optical amplifier technical requirement and measuringmethod. | |
