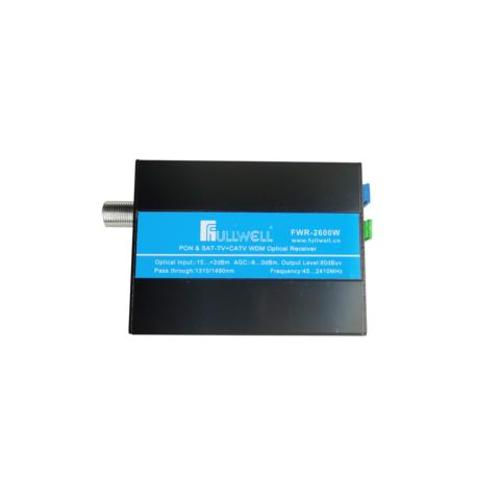

Satellite and TV Mini Receiver for receiving C-band signal with WDM
Short Description:
| Item | |
| Description | Remark |
| Input Optical Power Range | |
| -15~+2dBm | |
| AGC：-8~0dBm | |
| Responsivity | |
| ≥0.9A/W | |
| Optical Return Loss | |
| ≥45dB | |
| Receive Wavelength | |
| 1550nm/1310+1490nm | |
| Frequency Range | |
| 45-2150MHz | SAT-TV+CATV |
| CATV | |
| Flatness | |
| ±1.0dB(47~1000MHz) | |
| Output Level | |
| ≥80dBμV | -8~0dBm/AGC |
| CNR/CSO/CTB | |
| ≥50dB/≥60dB/≥65dB | -1dBm input power |
| MER/BER | |
| ≥32(64QAM)/≤1×10-4 | -12dBm |
| Return Loss | |
| ≥14dB(47~1000MHZ) | Output Impedance/75Ω |
| AGC Stability | |
| ±1dB(-8~0dBm) | |
| SAT-IF | |
| Flatness | |
| ±1.5dB(1000~2400MHz) | It varies with the input level. |
| Output Level | |
| ≥80dBuv | -8~0dBm/AGC |
| Return Loss | |
| ≥10dB(1000~2150MHz) | Output Impedance/75Ω |
| AGC Stability | |
| ±1dB(-8~0dBm) | |
| RF Connector | |
| F-female | |
| Optical Connector | |
| SC/APC | |
| PON Connector | |
| SC/UPC | Depending on the user's choice |
| Power Supply | |
| 5V/500mA | outlay AC90～255V→DC5V |
| Power Consumption | |
| <2W | |
| Working / Storage Temperature | |
| -5~45℃/-25~75℃ | 5～90（Non-condensation） |
| Dimension | |
| 80×55×25mm | Iron box structure |
