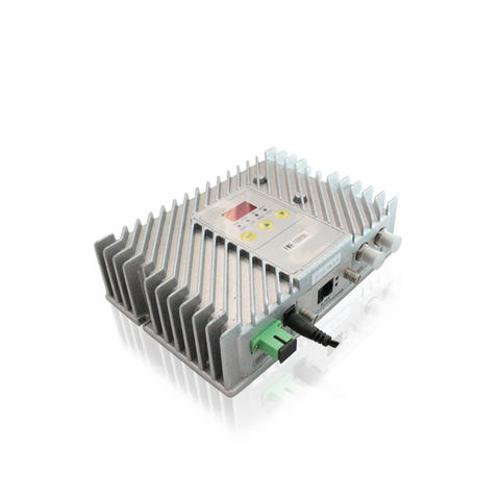

Building Optical Receiver is designed as a low power optical receiving
Short Description:
| ITEM | |
| UNIT | |
| FWR-1090MG | FWR-1090MG(+FWDM) |
| Optical Wavelength | |
| nm | |
| 1300~1560 | 1540~1560 |
| Optical Port/Return Loss | |
| /dB | |
| SC or FC/APC(RL≥45) | |
| Range of input of Optical Power | |
| dBm | |
| -10~+2dBm(receiving -3~-5dBm suggested) | |
| Frequency Range/Flatness | |
| MHz/dB | |
| 47 or 85~1000/±0.75 | |
| RF Output Level | |
| dBuV | |
| 2×100/-7dBm | |
| AGC Feature | |
| dB | |
| -7~+2dBm/nominal output level±1.5 | |
| C/N | |
| dB | |
| ≥51(-2dBm receiving) | |
| CTB/CSO | |
| dB | |
| 66/65(when output level at nominal) | |
| Attenuation/Equalization | |
| dB | |
| 0~15,panel function and WEB monitoring adjustment both supported | |
| Return Loss of RF port | |
| dB | |
| 47~550MHz≥16,550~1000MHz≥14 | |
| Operation&Storage Temperature | |
| ℃ | |
| -30~+50/-40~+65 | |
| Power/Consumption | |
| V/W | |
| 90~250V | |
| Outline/Size | |
| mm | |
| 180×130×47/162,Φ4~Φ5 |
