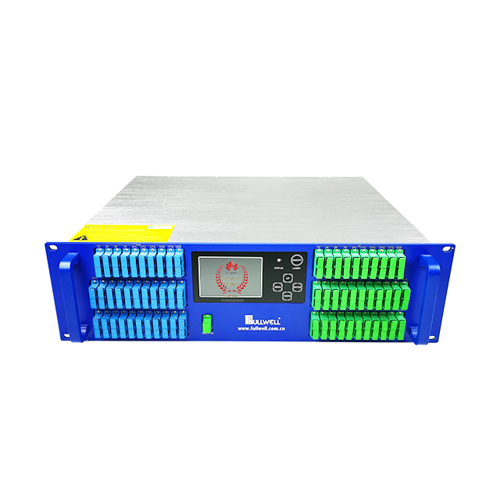

64 port G-PON XGS-PON CATV WDM EDFA optical combiner with mature RF overlay technology
Short Description:
| Items | |
| Unit | Performance Index |
| Optical Operating Wavelength | |
| nm | 1535~1565 |
| Input Optical Power Range | |
| dBm | -10~+10 |
| Noise Ratio | |
| dB | ≤5.0 (0 dBm,@1550nM) |
| Gain Flatness | |
| dB | <±0.3 |
| Optical Power Output Stability | |
| dB | <±0.5 |
| Polarization Sensitivity | |
| dB | <0.2 |
| Polarization Mode Dispersion | |
| Ps | <0.5 |
| Input End Pump Leakage Power | |
| dB | ≤-30 |
| Output End Pump Leakage Power | |
| dB | ≤-30 |
| Optical Input, Output Return Loss | |
| dB | >45(APC Stepped Face) |
| Pump Operating Number | |
| PCs | 2~5 |
| Rated Output Power | |
| dBm | 32~45 |
| Linker(IN) | |
| - | SC/APC or LC/APC |
| Linker(OUT) | |
| - | SC/APC or LC/APC |
| Power Supply/Consumption | |
| V/W | AC165~265 or DC-48/20 |
| Operating/Storage Temperature | |
| ℃ | -20~65/-30~70 |
| Operating/Storage Humidity | |
| % | 5~90 |
| Case Size | |
| mm | 530×486×88(2U) |
| Network Management Connector | |
| / | RJ45(following national network management standard, supports WEB) |
| PON Optical Path with WDM | |
| PON Wavelength | |
| mm | 1310/1490 |
| XG(S)- PON Wavelength | 1310/1490 & 1270/1577 (customized) |
| PON Linker | |
| / | SC/UPC or LC/UPC |
| Uplink optical ports | |
| pcs | 64 |
| Output ports | |
| Pcs | 64 |
| PON Insertion Loss | |
| dB | <1.2 |
| 1550 Port Insertion Loss | |
| dB | <0.7 |
| Optical isolation | |
| dB | 40 |
| Optical Switch | |
| Insertion Loss | |
| dB | <1 |
| Harass | |
| dB | <-60 (isolation between A and B) |
| Switch Time | |
| ms | <10 |
| Switched Power Threshold Range | |
| dBm | -5~10 |
