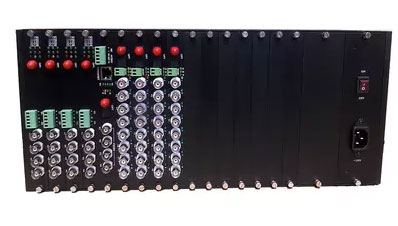

Chassis Video optic Multiplxer


Chassis Video optic  Multiplxer adopt complete digital fiber transmitting mode, it can transmit more than 100 channels digital video, high-fidelity audio, telephone and low rate data.


Specification



Features:
● Industry-level Design, SMT
● Full Digital Fiber-optic Transmission Platform of 2.5Gbit/s
● Large-scale Proprietary IC Core
● PAL/NTSC/SECAM Compatible
● Multi-services Flexible Configuration on the Same Platform
● Telephony/Contact Closure Extension
● Indicators for Power Supply, Video, Optic-link and Data-loop
● Auto-Resettable Fuses
● Free from In-field Adjustment
● Flexible and Easy Mount
● Protection against lightening strike and surge

Applications:
● Intelligent Transportation System
● Connection of Sub-network for Surveillance Center
● Public Security Surveillance
● High Way & Toll Station Surveillance
● High Quality Video Conference
● Industrial Closed Circuit Television Surveillance
● Transmission distance: 20km

Specifications:

● Video
Bandwidth: 8MHz
Quantization: 8-bits
DG: 1% typical
DP: 1 typical
SNR: >67dB

● Audio
Bandwidth per Channel: 20Hz~20KHz
Quantization: 24-bits
SNR: >75dB
THD: <0.1%

● Data(optional)
Interface Type: RS-232/485/422, Manchester, Biphase
Operation Mode: Full-duplex/Half-duplex
Data Rate: D<10-9

● Ethernet
Operation Mode: 10/100M, Full-duplex/Half-duplex Self-adaptive
Throughput Ratio: 100%@10M
Packet Loss Ratio: 0%
● Power Supply: 220VAC or 110VAC ±20%, Exhausted power 25W (per end)


Solutions



.

Model

Model
Specifications
HY32V
1 Video Optical  SM Single Fiber 20km   FC
HY132V1D
1 Video Optical +1RS485 Reverse Data SM Single Fiber  20km   FC
