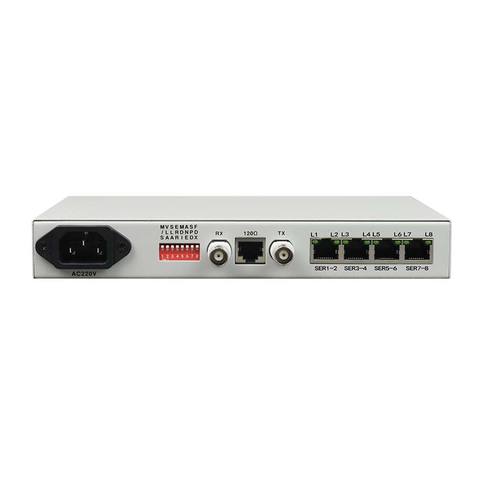

E1 To Eth + 2 RS232 Converter FE and RS232 Over E1 Protocol Converter
Short Description:
| E1 Interface | Interface Standard: comply with protocol G.703; |
| Ethernet interface (10/100M) | Interface rate: 10/100 Mbps, half/full duplex auto-negotiation |
| Serial Interface | |
| Standard | EIA/TIA-232 RS-232 (ITU-T V.28) |
| Serial Interface | RS-422: TXD+, TXD-, RXD+, RXD-, Signal Ground |
| Power | power supply:AC180V-260v;DC-48V;DC+24V |
| Dimension | inner packing size: 216X138X31mm(WXDXH) |
| Working environment | working temperature:-10°C ~ 50°C |
| Working Humidity:5%~95 % (no condensation) | |
| Storage Humidity:5%~95 % (no condensation) |
