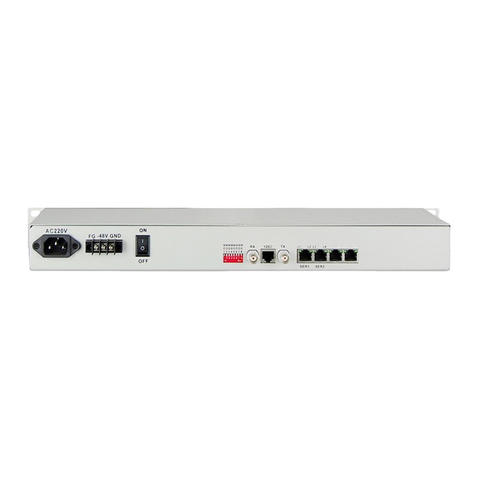

High Quality E1 G.703 over Serial Multiplexer RS485 RS232 to E1 Converter
Short Description:
| E1 Interface | |
| Serial interface(RS232/422/485 are optional) | |
| Interface Standard | |
| comply with protocol G.703 | |
| RS-422 | TXD+, TXD-, RXD+, RXD-, Signal Ground |
| Interface Rate | |
| n*64Kbps±50ppm | |
| RS-485 4 wires | TXD+, TXD-, RXD+, RXD-, Signal Ground |
| Interface Code | |
| HDB3 | |
| RS-485 2 wires | Data+(Correspond TX+), Data-(Correspond TX-), Signal Ground |
| E1 Impedance | |
| 75Ω (unbalance),120Ω (balance) | |
| RS-232 | RXD, TXD, Signal Ground |
| Jitter tolerance | |
| In accord with protocol G.742 and G.823 | |
| Allowed Attenuation | |
| 0~6dBm | |
