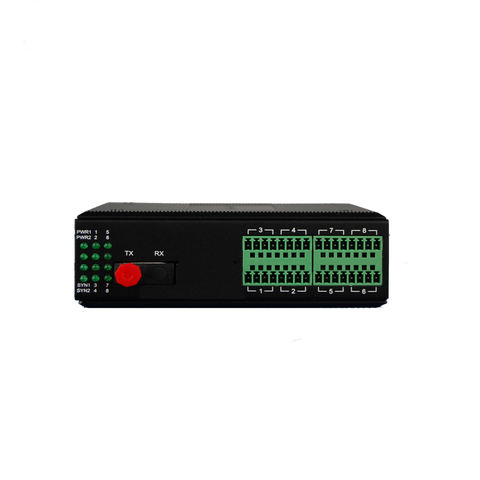

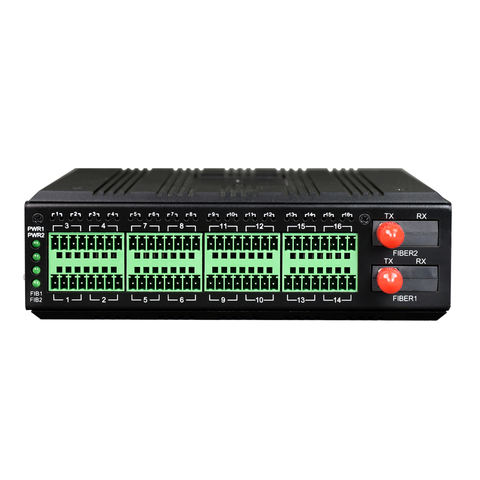

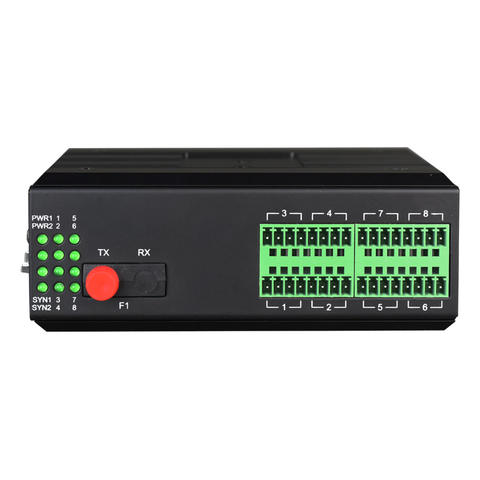

32 Channels Dry Contact Closure over Fiber Optic Converter
Short Description:
| Product Number | FCP-K32G |
| Product Function Description | Industrial rail type 32-Channel dry contact 1+1 optical fiber backup optical transceiver |
| Service Port Description | 32-Channel dry contact, 2 optical fiber interface interfaces |
| Power Supply | Redundant dual power supply input DC9-48V, power consumption <5WOverload protection: support; reverse polarity protection: support; redundant protection: supportAccess terminal: 4-core 5.08mm pitch plug-in terminal |
| Product Size | Shell: IP40 protection grade, aluminum alloy materialDimensions: 162mm(L) x 132mm(W) x 50.0mm(H)Installation method: guide rail installation, wall-mounted installation |
| Weight | 0.95KG/PCS |
