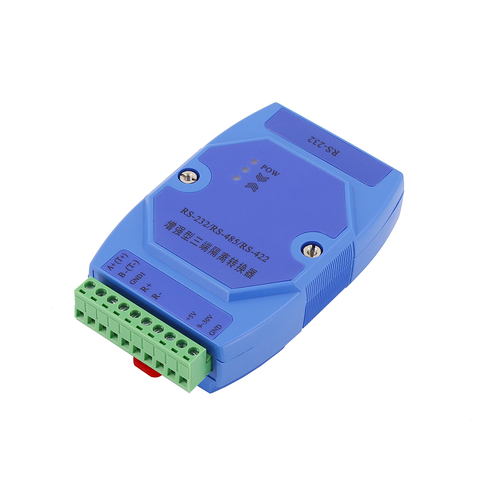

Cheap Price Industrial Grade RS232 to RS485 RS422 Converter
Short Description:
| Technical parameters | |
| Standard | |
| Compliant with EIA RS-232, RS-485, RS-422 standards | |
| Interface | |
| Interface form | |
| RS-232: DB9 interfaceRS-485/RS-422: Industrial terminal block | |
| LEDs | |
| Baud Rate | |
| MWE485-A/C/TD/TDM: 300bps~115.2kbpsMWE485-B/D/E: 300bps~38.4kbpsMWE485-F: 300bps~57.6kbps | |
| LEDs | |
| Power indicator | |
| POW(Red): Always lit when the power is connected normall | |
| Serial port transceiver indicator light | |
| Green): Flashes when data is being sent or received(Yellow): Flashes when data is being sent or received | |
| Power | |
| Power Supply | |
| Serial Port Powered, external supply DC5V, external supply DC 9~30V | |
| Interface | |
| DB9 interface, industrial terminal block | |
| Transmission distance | |
| Shell | |
| DIN rail shell | |
| Dimension | |
| 117mm×34mm×72mm | |
| Weight | |
| 0.1kg | |
| Working Environment | |
| Operating Temperature | |
| -40°C~85°C | |
| Storage temperature | |
| -40°C~85°C | |
| Ambient Humidity | |
| 5%~95% | |
| Warranty | |
| Warranty | |
| 5 Years |
