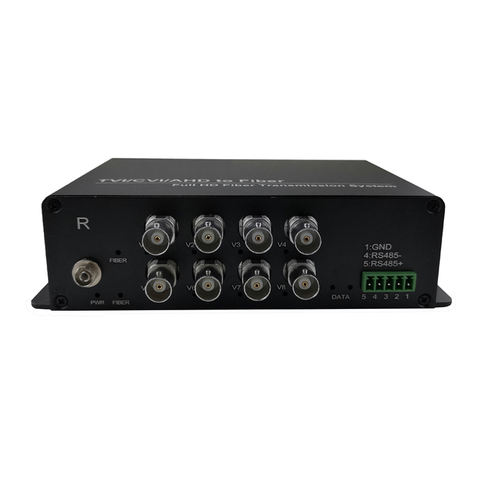

8 Channel Coaxial HD 1080P AHD TVI CVI Video to Fiber Optical Converter With Reverse RS485 Data
Short Description:
| Optical | |
| Wavelength | 1310nm&1470nm-1610nm |
| Fiber Type | Single mode, single fiber(default) |
| Distance | 0km~80km |
| Fiber interface | FC(default) ST / SC (optional) |
| HD Video | |
| Video Interface Number | 8 |
| Physical Interface | BNC |
| Video input and output impedance | 75Ω (unbalanced) |
| Input level | >500mVp-p |
| Output level | 1Vp-p |
| Bandwidth | 30MHz(720P); 60MHz(1080P)150MHz(1960P) |
| Digit bit width | 8bit |
| Support camera pixels | 3 megapixel, 4 megapixel, 5 megapixel |
| Video pixel | 1280（H）* 720（V） 1920（H）* 1080（V） 2560（H）* 1960（V） |
| Signal to noise ratio | > 60dB (weighted) (8Bit) |
| Data | |
| Physical Interface | The industry standard connecting terminal |
| Interface Signal | RS485 |
| Baud Rate | 1200~9600bit/s |
| BER | < 10 -9 |
| Electrical & Mechanical | |
| Input Power Requirements | DC 5V |
| Power Adapter | AC 100V~240V |
| Dimensions | 16.7*11.3*4.4cm |
| Packing | 34*25*5.5 cm |
| Weight | 1.65kg |
| Environmental | |
| Operating temperature | -20°C ~ +75°C |
| Storage temperature | -40°C ~ +85°C |
| Working humidity | 0% ~ 95% (non-condensing) |
| MTBF | >100,000 hours |
