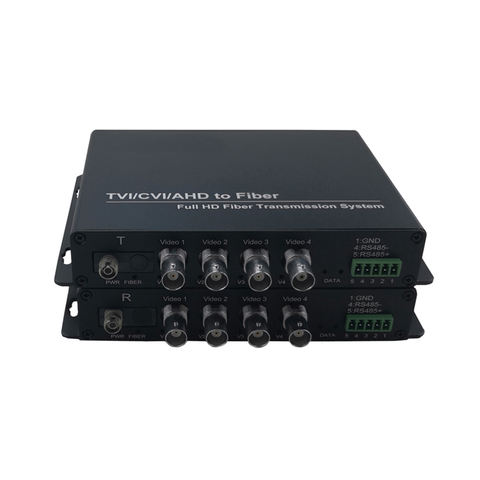

4ch Coaxial HD 1080P TVI CVI AHD Video to Fiber Optic Converter With Reverse RS485 Data

Short Description:


Product Detail

Optical
Wavelength 1310nm&1470nm-1610nm
Fiber Type Single mode, single fiber(default)
Distance 0km~80km
Fiber interface FC(default) ST / SC (optional)
HD Video
Video Interface Number 4
Physical Interface BNC
Video input and output impedance 75Ω (unbalanced)
Input level >500mVp-p
Output level 1Vp-p
Bandwidth 30MHz(720P); 60MHz(1080P)150MHz(1960P)
Digit bit width 8bit
Support camera pixels 3 megapixel, 4 megapixel, 5 megapixel
Video pixel 1280(H)* 720(V) 1920(H)* 1080(V) 2560(H)* 1960(V)
Signal to noise ratio > 60dB (weighted) (8Bit)
Data
Physical Interface The industry standard connecting terminal
Interface Signal RS485
Baud Rate 1200~9600bit/s
BER < 10 -9
Electrical & Mechanical
Input Power Requirements DC 5V
Power Adapter AC 100V~240V
Dimensions 16.7*11.3*2.8cm
Packing 34*25*5.5 cm
Weight 1.3kg
Environmental
Operating temperature -20°C ~ +75°C
Storage temperature -40°C ~ +85°C
Working humidity 0% ~ 95% (non-condensing)
MTBF >100,000 hours
