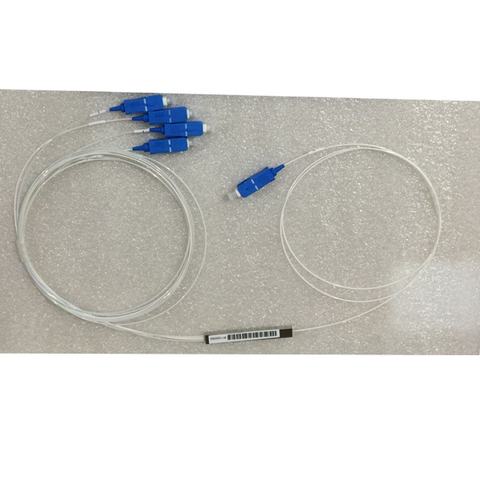

1x4 mini PLC splitter with SC UPC connector
Short Description:
| Parameters | |
| Specifications | |
| Unit | Notes |
| Channel Number | |
| 1×4 | |
| Accord with RoHS requirement | |
| Operation Wavelength | |
| 1260 ~ 1650 | |
| nm | |
| Test Wavelength | |
| 1310/1550 | |
| nm | |
| Insertion Loss | |
| ≤7.4 | |
| dB | |
| Uniformity | |
| ≤0.6 | |
| dB | |
| PDL | |
| ≤0.2 | |
| dB | |
| Return Loss | |
| ≥50 | |
| dB | |
| Directivity | |
| ≥55 | |
| dB | |
| Fiber Type | |
| G657A | |
| Pigtail Type | |
| Input: 0.9mm loose tube | |
| Output: 0.9mm loose tube | |
| Input Length | |
| ≥1 | |
| m | |
| Output Length | |
| ≥1 | |
| m | |
| Connector | |
| SC/UPC | |
| Tube Color | |
| Input:white | |
| Output:white | |
| Package Dimension | |
| 60.0(L) ×7.0(W) × 4.0(H) | |
| mm | |
| Operation Temperature | |
| -40 ~ +85 | |
| ℃ | |
| Storage Temperature | |
| -40 ~ +85 | |
| ℃ |
