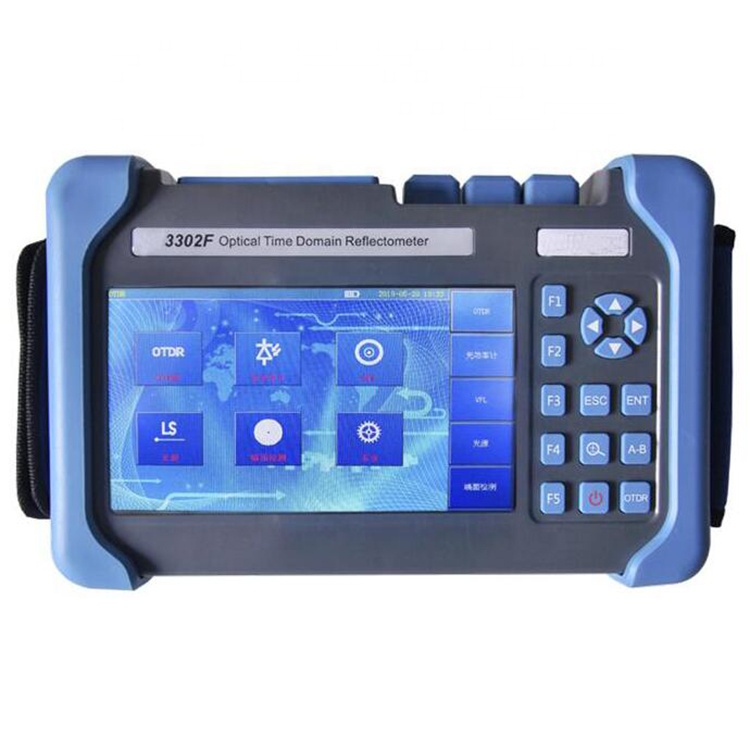

Joinwit JW3302F Single Mode Multimode Handheld OTDR with PON Network Test and Visual Fault Locator
Short Description:
| Range accuracy | ±(1m+Sample interval+0.0025%×distance)(Index placement error is not included) |
| Range resolution | 0.05,0.1,0.2,0.5,1,2,4,8,16m |
| The test range | 0.4,0.8,1.6,3.2,6.4,16,32,64,128,256,512km(Single Mode); 0.4,0.8,1.6,3.2,6.4,16,32(850nm Multimode) |
| The test pulse width | 5,10,30,100,275,500,1000,5000,10000,20000ns 5,10,30,100,275,500,1000(850nm Multimode) |
| Loss threshold | 0.01dB |
| The sampling points | 128k |
| linearity | 0.05dB/dB |
| Loss resolution | 0.001dB |
| Waveform storage capacity | ≥1000 |
| From the unit | Kilometers, meters, thousands of feet, feet |
| Display | 800×480,7inch TFT Color LCD(With touch screen) |
| External interface | USB, min-usb, Ethernet, headphones,SD |
| Optical output interface | FC/SC/ST(replaceable) |
| VFL | 650nm±10nm,2mW; |
| Optical power meter | Wavelength range :1200nm ~ 1650nm Power range :-60 ~ 0dBm,Test uncertainty :±5%(-10dbm,CW) |
| The power supply | AC/DC adapter: voltage allowed range :100V~240V(1.5a), frequency allowed range: 50/60hzTo: dc 12 v + 1 v (2 a)Internal lithium battery: 8.4v, battery working time :12 hours (normal temperature) |
| Interface language | Simplified Chinese,English and other languages are available |
| Environmental adaptability | Working temperature:-5℃~50℃(The battery:5℃~40℃) Storage temperature:-40℃~70℃(The battery:-20℃~60℃) |
| Installation dimensions | 253×168×73.6mm |
| Weight | 1.5kg (battery included) |
