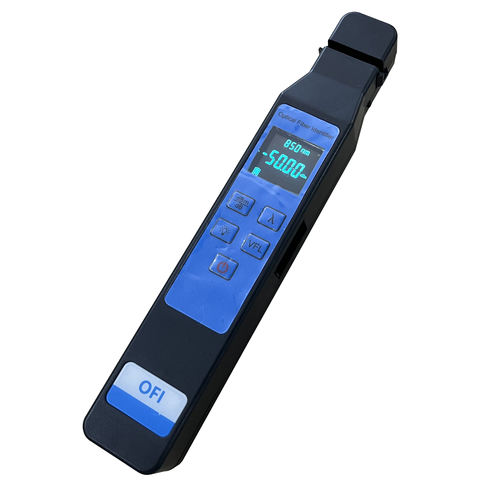

Optical Fiber Identifier with power meter and VFL FTTH Tool Quick Detection Fiber Traffic Identifier Fiber Detector
Short Description:
| Identifier module | |
| Wavelength range(nm) | 800〜1700 |
| Probe type | InGaAs |
| Adapter type (mm) | 250um、900um、2mm、3mm |
| Modulation frequency (Hz) | CW, 270, 1K, 2K |
| Optical fiber signal display detection range (dBm) | +13 〜-50 |
| Signal direction detection range(dBm) Typical Value | +13 〜-35 |
| Signal frequency indication (Hz) | 270, 1K, 2K |
| Signal frequency detection range (dBm) Typical Value | +13 〜-30 |
| Standard OPM module | |
| Test wavelength(nm) | 850、 1300、 1310、 1490、 1550、 1625 |
| Power test range (dBm) | +26 〜-50 |
| Unit | dBm、dB、xW |
| Resolution ratio (dB) | 0.01 |
| Uncertainty (dB) | <0.5 |
| Test interface | Φ 2.5mm universal interface |
| VFL module | |
| Wavelength (nm ) | 650±10 |
| Output power (mW) | >10 |
| Test interface | Φ 2.5mm universal interface |
| Others | |
| Display screen | Color-LCD |
| Power supply | 2*1.5V AA battery |
| Operating temperature (°C) | -20 〜+60 |
| Storage temperature (°C) | -30 〜+70 |
| Dimension (mm)without switch pull button | 220*38*28 |
| Weight (g) without batteries | 145 |
