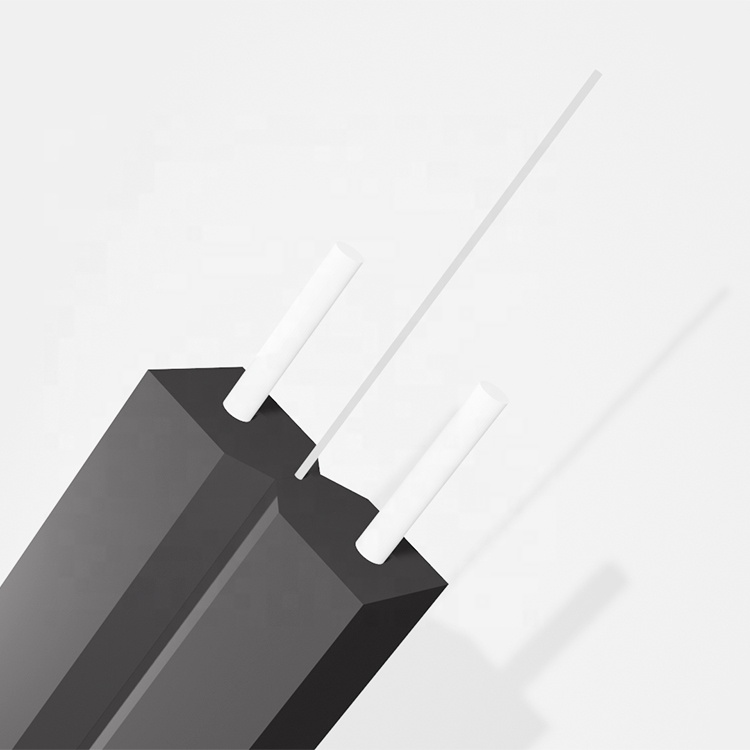

Corning OptiTap Tonable Flat Drop Cable 200FT 300FT Fiber Optic Hardened FTTH Drop Cable
Short Description:
| No. | |
| Items | |
| Unit | Specification |
| G.657A1 | |
| 1 | |
| Mode Field Diameter | |
| 1310nm | |
| μm | 9.0±0.4 |
| 1550nm | |
| μm | 10.1±0.5 |
| 2 | |
| Cladding Diameter | |
| μm | 124.8±0.7 |
| 3 | |
| Cladding Non-Circularity | |
| % | ≤0.7 |
| 4 | |
| Core-Cladding Concentricity Error | |
| μm | ≤0.5 |
| 5 | |
| Coating Diameter | |
| μm | 245±5 |
| 6 | |
| Coating Non-Circularity | |
| % | ≤6.0 |
| 7 | |
| Cladding-Coating Concentricity Error | |
| μm | ≤12.0 |
| 8 | |
| Cable Cutoff Wavelength | |
| nm | λcc≤1260 |
| 9 | |
| Attenuation(max.) | |
| 1310nm | |
| dB/km | ≤0.35 |
| 1550nm | |
| dB/km | ≤0.21 |
| 10 | |
| Macro-Bending Loss | |
| 1turn×10mm radius @1550nm | |
| dB | ≤0.75 |
| 1turn×10mm radius @1625nm | |
| dB | ≤1.5 |
