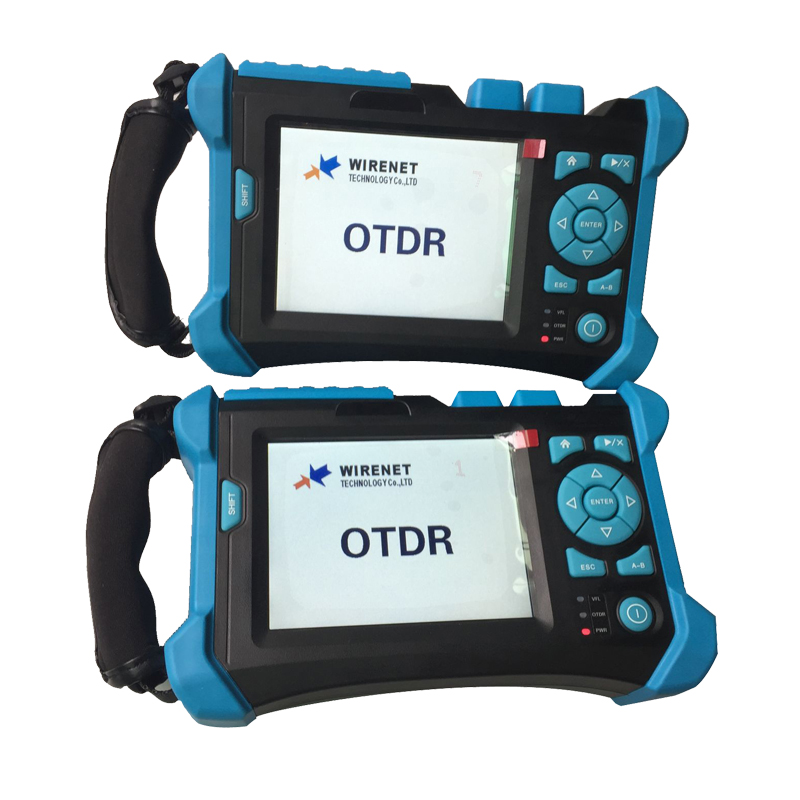

Optical Time Domain Reflectometer auto testing machine 1310 1490 1550 625nm otdr
Short Description:
| Pulse Width | (SM 1310/1550NM) 5ns 10ns 20ns 50ns 100ns 500ns 1μs 2μs 5μs 10μs ;(MM 850/1300NM) 5ns,10ns,20ns,50ns,100ns,500ns,1us |
| Distance Range | (SM 1310/1550NM) Dead zone test, 1.3km, 2.5km, 5.0km, 10km, 20km, 40km, 80km, 120km;(MM 850/1300NM):100m,400m,1.3km,2.5km,5km,10km,20km,40km,80km |
| Sampling Resolution | Minimum 0.05m |
| Sampling Point | 128,000 |
| Linearity | ≤0.05dB/dB |
| Loss Threshold | 0.01dB |
| Loss Resolution | 0.001dB |
| Distance Resolution | 0.01m |
| Distance Accuracy | ±(1m+measuring distance×3×10 +sampling resolution) |
| Data Storage | 20000 groups of curve |
| VFL | 10mW,CW/2Hz |
| Interface | 3 USB ports(Type A×2,Type B×1) |
| Display | 5.6 inch TFT-LCD, Touching screen |
| Battery | 7.4V/4.4Ah lithium battery , support 8 hours continuous working |
| Working conditions | Working Temp:-10℃~+50℃;Storage Temp:-20℃~+70℃;Humitity :≤95%(non-dew) |
| Dimensions/Weight | 253×168×73.5mm / 1.5kg(include battery) |
| Packing list | Straps; Adaptor; Lithium battery; FC connector; USD Cable; User Guide; CD; softbag; cleaning cotton |
