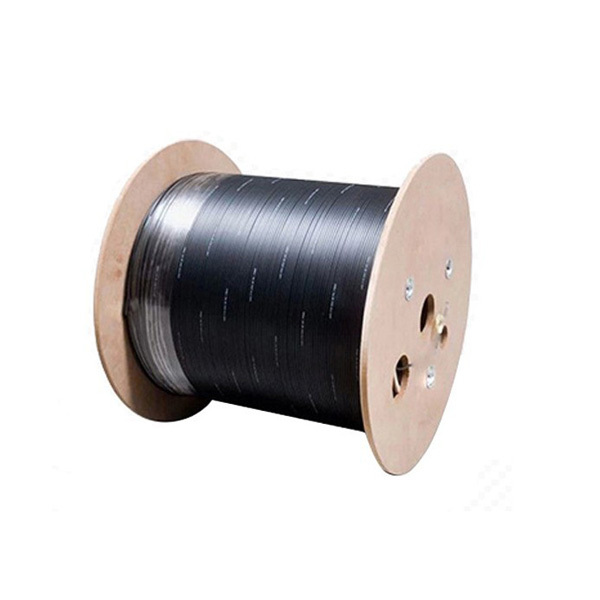

LSZH Outdoor Dual Purpose 1 2 4 core FTTH Fiber Optic Drop Cable
Short Description:
| Parameter | |
| Fiber Count | |
| Test Method | |
| Up to 12 | |
| Number of elements | |
| 1 | |
| Cable diameter (nominal) | |
| 3.8 mm | |
| Cable weight (nominal) | |
| 12 kg/km | |
| Minimum bend radius | |
| 30 mm | |
| IEC 60794-1-21 | |
| Crush Resistance (via 100mm plates) | |
| 650 N | |
| IEC 60794-1-21 | |
| Torsion | |
| 10 Cycles 180° apart | |
| IEC 60794-1-21 | |
| Repeated Bending | |
| 35 Cycles R=20xD | |
| IEC 60794-1-21 | |
| Temperature Performance | |
| -10°C to +70°C | |
| IEC 60794-1-21 | |
| Water penetration (3m cable, 1m head of water) | |
| No leakage | |
| IEC 60794-1-21 | |
| Drip test (300 mm sample of loose tube @ 80˚C) | |
| No leakage | |
| IEC 60794-1-21 |
