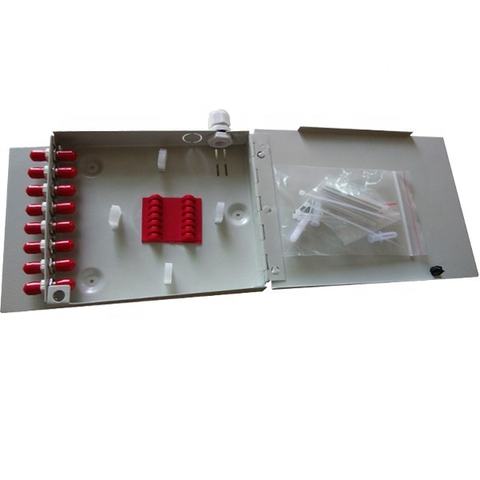

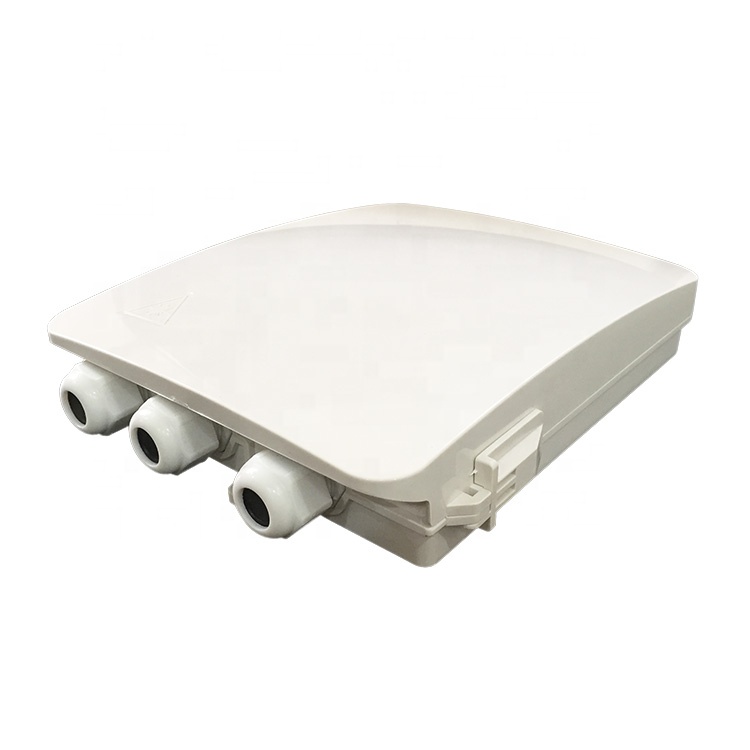

FTTH 8 Core Optical Splitter Wall Mount ABS Fiber Optic Termination Box
Short Description:
| Operating temperature | -40℃~+70℃ |
| Storage temperature | -40℃~+70℃ |
| Working humidity | ≤90% (+30℃) |
| Atmospheric pressure | 62Kpa ~ 106Kpa |
| Insulation resistance | Grounding device and the insulation resistance between the body machining parts not less than 2 x104m Ω / 500 v (DC) |
| Voltage resistance | The voltage resistance between the grounding device and the metal work of the box body is not less than 3000V (DC) /1min |
| Insertion loss | IL≤ 0.3dB (PC type);IL≤ 0.3dB (APC type) |
| Return loss | RL≥40dB (PC type);RL≥50dB (UPC type);RL≥60dB (APC type) |
| Interchangeability | ≤ 0.2dB |
| Grounding voltage level | not less than 3000V (DC) /1min no breakdown, no arc |
| External size | 210*175*50 (mm) |
| Weight | 0.5-0.6kg |
